Product Details:
|
| R 25℃: | 0.5KΩ-2 MΩ | B Value: | 3000-4600K |
|---|---|---|---|
| R Tolerance: | 0.5%, 1% , 2% , 3% , 5% | B Tolerance: | 0.5%, 1% , 2% , 3% |
| Head Size: | Φ3.6/Φ4.5/Φ5.5 | Length: | 15, 20, 25, 45, 75mm |
| High Light: | Thin Film NTC Thermistor 10 K,Thin Film NTC Thermistor 3977,Polyimide Thin Film NTC Thermistors |
||

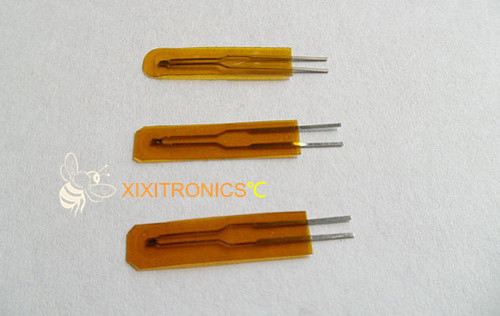

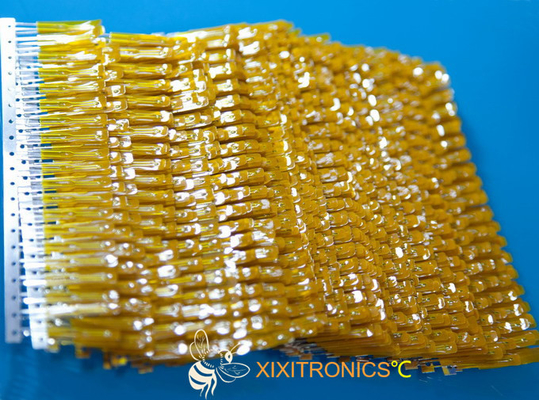

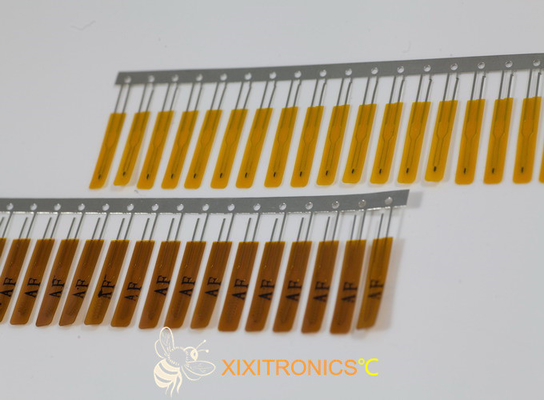

Polyimide Thin Film NTC Thermistors 10K 3977 MF5A-6 Series
Features:
■ Suittable for narrow space
■ Rapid response time
■ Elastic and solder easily
■ Polyimide thin- film Insulated with high accuracy
■ Proven long term Stability and Reliability
■ High Sensitivity and Fast thermal response
■ Light touch solution with low cost and high durability
Applications:
■ Temperature sensing , control and compensation
■ Copying machines and multi-function printers (surface)
■ Battery packs, IT equipment, mobile devices, LCDs
Dimensions:
Product specification:
|
Specification
|
R25℃
(KΩ) |
B25/50℃
(K) |
Disspation Constant
(mW/℃) |
Time Constant
(S) |
Operation Temperature
(℃) |
| XXMF5A-6-310-102□ | 1 | 3200 |
0.75 - 3.0 typical in still air at 25℃
|
3.5-6 typical in still air
|
-30～200
|
|
XXMF5A-6-338/350-202□
|
2
|
3380/3500 | |||
| XXMF5A-6-327/338-502□ | 5 | 3270/3380/3470 | |||
|
XXMF5A-6-327/338-103□
|
10
|
3270/3380 | |||
| XXMF5A-6-347/395-103□ | 10 | 3470/3950 | |||
|
XXMF5A-6-395-203□
|
20
|
3950 | |||
| XXMF5A-6-395/399-473□ | 47 | 3950/3990 | |||
|
XXMF5A-6-395/399/400-503□
|
50
|
3950/3990/4000 | |||
| XXMF5A-6-395/405/420-104□ | 100 | 3950/4050/4200 | |||
| XXMF5A-6-420/425-204□ | 200 | 4200/4250 | |||
|
XXMF5A-6-425/428-474□
|
470
|
4250/4280 | |||
| XXMF5A-6-440-504□ | 500 | 4400 | |||
| XXMF5A-6-445/453-145□ | 1400 | 4450/4530 |
