Product Details:
|
R 25℃: | 1KΩ-2.3 MΩ | B Value: | 3000-4600K |
---|---|---|---|
R Tolerance: | 25°C~45°C±0.1°C | B Tolerance: | 0.5% |
Highlight: | HF 400 Medical Temperature Probes,Body cavity Medical Temperature Probes,Body Cavity probe thermometer medical |

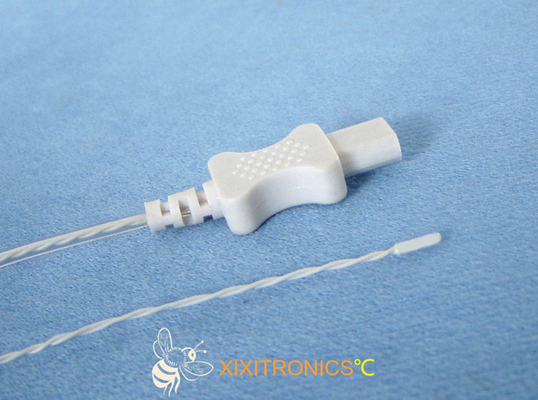

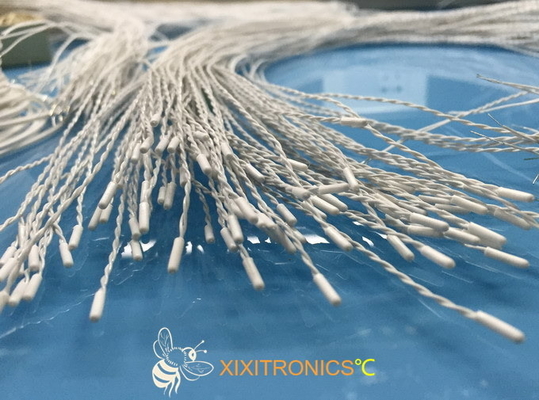

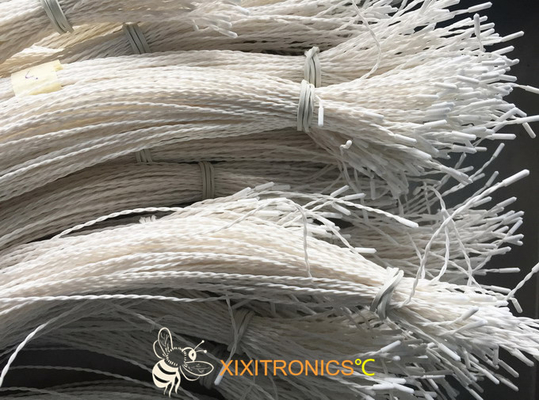

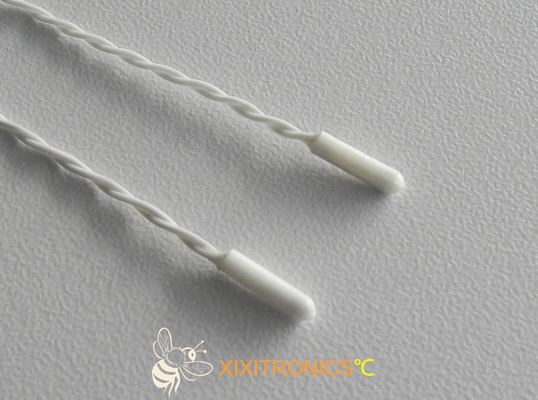

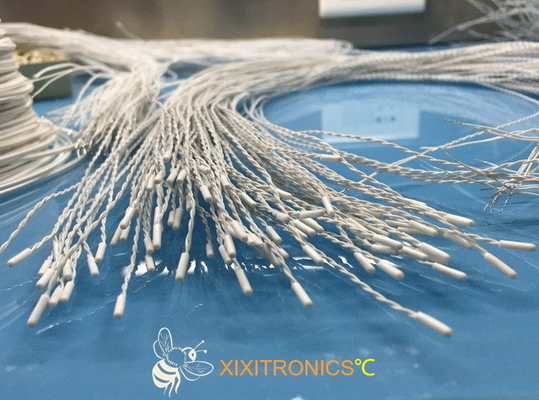

Disposable General Purpose Medical Temperature Probe Manufacturer HF 400 Series ( 2.252KΩ Thermistor Element )
Features:
- 400 Series compatible. Interchangeable sensor.
- Compatible with most OEM patient monitoring equipment.
- Consistent dimensions of molded cap.
- Operating temperature range 0℃ to+70℃.
- Temperature tolerance of ±0.1℃ in the range of 25℃ to 45℃.
- Standard lead type is 28/30/32 AWG with white medical grade Teflon /HDPE /PVC insulation.
- Over molded connector for durability and consistency.
- Compatible with most OEM patient monitoring equipment.
- Custom wire types, lead lengths, insulation types and connector styles are available.
Applications:
- General temperature sensing.
- Temperature measurement in catheters such as Foley catheters.
- Skin surface, Body cavity , Oral / Nasal , Esophageal , Catheter, ear tympanic, Rectal…etc
