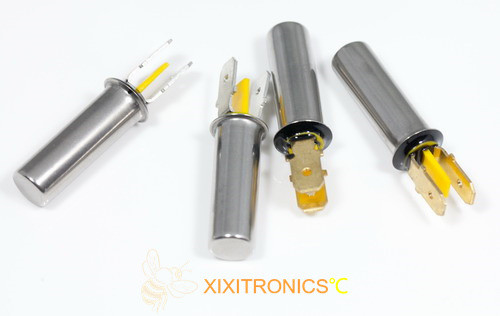

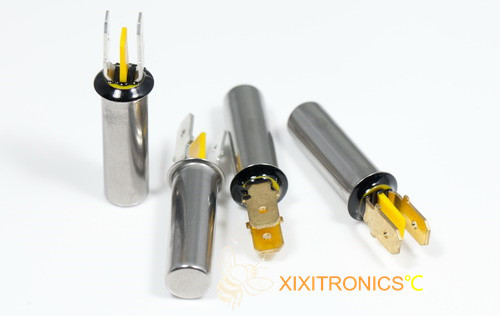

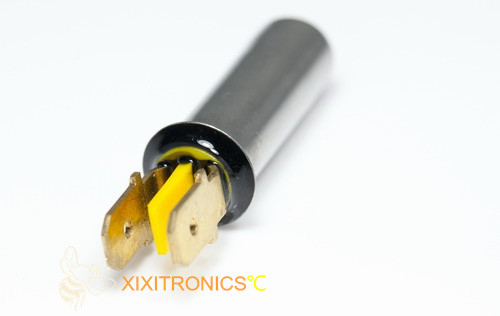

Plug In Immersion Temperature Sensor Probe For Coffee Machine 12K MFL Series

Plug In Immersion Temperature Sensor Probe For Coffee Machine 12K MFL Series
Plug In Immersion Temperature Sensor Probe For Coffee Machine 12K MFL Series Plug In Immersion Temperature Sensor Probe For Coffee Machine 12K MFL Series Plug In Immersion Temperature Sensor Probe For Coffee Machine 12K MFL Series Plug In Immersion Temperature Sensor Probe For Coffee Machine 12K MFL Series

Large Image :  Plug In Immersion Temperature Sensor Probe For Coffee Machine 12K MFL Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFL Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 50pcs/ bag
Delivery Time: 5 -12 work days
Payment Terms: T/T
Supply Ability: 2 Million Pieces Per Year

Plug In Immersion Temperature Sensor Probe For Coffee Machine 12K MFL Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Toleranc: 0.5% , 1% , 2% , 3%
Housing: SUS Φ9.8*30.5 Connector Pins: Tinned Brass 6.45*30
High Light:

12K Immersion Temperature Sensor

,

Immersion Temperature Sensor 12K

,

immersion temperature probe 12K

Plug-In Immersion Temperature probe for Coffee Machine 12K MFL Series



Features:

Miniature, immersible, and Fast thermal response
To install and fixed by Plug-In​ connector
, easy to install, size can be customized

 Suitable for use in high humidity and high moisture conditions
Proven long term Stability and Reliability ,Excellent performance of voltage resistance
Connectors could be AMP, Lumberg, Molex, Tyco ,
wide range of applications

Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

Products are in accordance with the RoHS, REACH certification.



Applications:

Coffee Machine

 Water Heater, Wall-hanging stove

Hot water boiler tanks ,industrial or household applications
Automobile engines (solid), engine oil (oil), radiators (water)
Automobile or motorcycles ,the Electronic fuel injection
Measuring oil / coolant temperature



Characteristics:

1. Recommendation as follows:
    R25℃=12KΩ±1% B25/50℃=3730K±1% or
    R25℃=50KΩ±1% B25/50℃=3950K±1% or
    R25℃=100KΩ±1% B25/50℃=3950K±1%
2. Working temperature range: -30℃~+125℃
3. Thermal time constant: MAX. 15sec.(
in stirred water)

4. Insulation voltage: 1800VAC, 2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Above characteristics all can be customized



Dimensions:



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)

Time Constant
(S)
Operation Temperature
(℃)
XXMFL-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




5 - 7typical in stirred water





-30~125
XXMFL-338/350-202□
2
3380/3500
XXMFL-327/338-502□ 5 3270/3380/3470
XXMFL-327/338-103□
10
3270/3380
XXMFL-347/395-103□ 10 3470/3950
XXMFL-395-203□
20
3950
XXMFL-395/399-473□ 47 3950/3990
XXMFL-395/399/400-503□
50
3950/3990/4000
XXMFL-395/405/420-104□ 100 3950/4050/4200
XXMFL-420/425-204□ 200 4200/4250
XXMFL-425/428-474□
470
4250/4280
XXMFL-440-504□ 500 4400
XXMFL-445/453-145□ 1400 4450/4530
