Product Details:
|
| R 25℃: | 2KΩ-2.3 MΩ | B Value: | 3200-4200K |
|---|---|---|---|
| R Tolerance: | 25°C~45°C±0.1°C , 0°C~70°C±0.2°C | B Tolerance: | 0.5% |
| Highlight: | 10K 3977 interchangeable thermistors,10K interchangeable thermistors,3977 10k ohm thermistor |
||

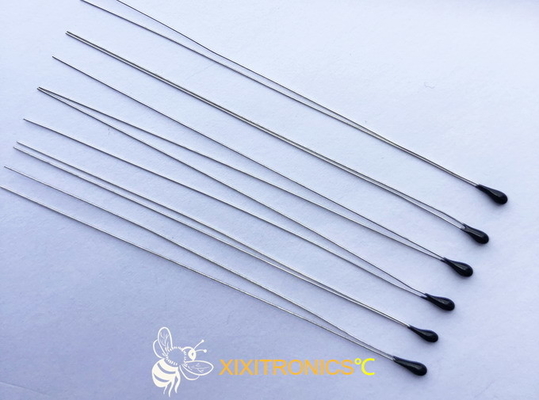

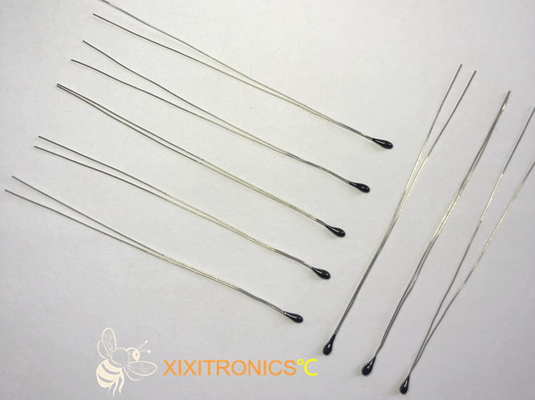

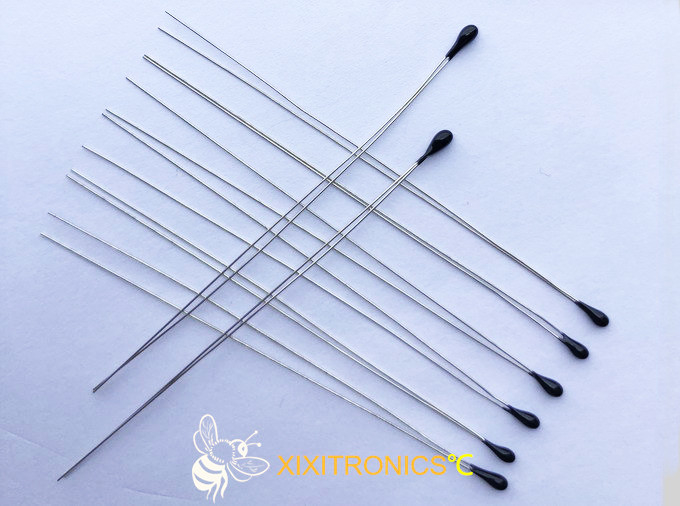

10K 3977 High Accuracy Interchangeable Thermistors MF5A-200 Series
Features:
■ Small size , High accuracy and Interchangeability
■ Long term Stability and Reliability
■ High Sensitivity and Fast thermal response
■ Thermally Conductive Epoxy coated
■ A high degree of measurement accuracy is required over a wide temperature range
Applications:
■ Temperature sensing , control and compensation
■ Assembly into various probes of Temperature sensors
■ General Instrumentation applications
Dimensions:
Product specification:
|
Specification
|
R25℃
(KΩ) |
B25/50℃
(K) |
Disspation Constant
(mW/℃) |
Time Constant
(S) |
Operation Temperature
(℃) |
| XXMF5A-2-310-102□ | 1 | 3200 |
0.75 - 3.0 typical in still air at 25℃
|
1 - 1.5 typical in liquids
|
-30～150
|
|
XXMF5A-2-338/350-202□
|
2
|
3380/3500 | |||
| XXMF5A-2-327/338-502□ | 5 | 3270/3380/3470 | |||
|
XXMF5A-2-327/338-103□
|
10
|
3270/3380 | |||
| XXMF5A-2-347/395-103□ | 10 | 3470/3950 | |||
|
XXMF5A-2-395-203□
|
20
|
3950 | |||
| XXMF5A-2-395/399-473□ | 47 | 3950/3990 | |||
|
XXMF5A-2-395/399/400-503□
|
50
|
3950/3990/4000 | |||
| XXMF5A-2-395/405/420-104□ | 100 | 3950/4050/4200 | |||
| XXMF5A-2-420/425-204□ | 200 | 4200/4250 | |||
|
XXMF5A-2-425/428-474□
|
470
|
4250/4280 | |||
| XXMF5A-2-440-504□ | 500 | 4400 | |||
| XXMF5A-2-445/453-145□ | 1400 | 4450/4530 |
