Automobile Battery Management System Surface Mounted Temperature Sensor 3200-4200K

Automobile Battery Management System Surface Mounted Temperature Sensor 3200-4200K
Automobile Battery Management System Surface Mounted Temperature Sensor 3200-4200K Automobile Battery Management System Surface Mounted Temperature Sensor 3200-4200K Automobile Battery Management System Surface Mounted Temperature Sensor 3200-4200K Automobile Battery Management System Surface Mounted Temperature Sensor 3200-4200K Automobile Battery Management System Surface Mounted Temperature Sensor 3200-4200K

Large Image :  Automobile Battery Management System Surface Mounted Temperature Sensor 3200-4200K

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFS Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year

Automobile Battery Management System Surface Mounted Temperature Sensor 3200-4200K

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Surface Mount Temperature Sensor 4200K

,

Battery Surface Mount Temperature Sensor

,

4200K surface mount sensor

Surface Mounted Temperature Sensor For Automobile Battery Management System MFS Series



Features:

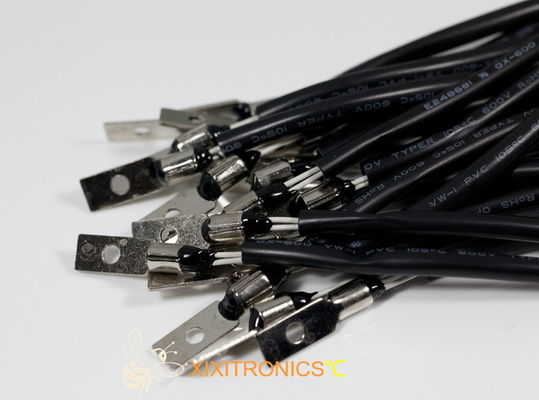

A glass-encapsulated thermistor element is sealed into a lug terminal
Proven long term Stability and Reliability
High Sensitivity and Fast thermal response
Surface mountable and various mounting options



Applications:
Air-conditioners outdoor units and heatsinks (surface)
Automobile inverters, Automobile battery chargers, evaporators, cooling systems
Water heater tanks and heat pump water heaters (surface)



Dimensions:



Automobile Brake Temperature Detection Sensors MFS Series 0 Automobile Brake Temperature Detection Sensors MFS Series 1



Automobile Brake Temperature Detection Sensors MFS Series 2 Automobile Brake Temperature Detection Sensors MFS Series 3



Automobile Brake Temperature Detection Sensors MFS Series 4 Automobile Brake Temperature Detection Sensors MFS Series 5



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFS-10-102□ 1 3200




2.1 - 2.5 typical in still air at 25℃




60 - 80
typical in still air




-30~80
-30~105
-30~125
-30~180
XXMFS-338/350-202□
2
3380/3500
XXMFS-327/338-502□ 5 3270/3380/3470
XXMFS-327/338-103□
10
3270/3380
XXMFS-347/395-103□ 10 3470/3950
XXMFS-395-203□
20
3950
XXMFS-395/399-473□ 47 3950/3990
XXMFS-395/399/400-503□
50
3950/3990/4000
XXMFS-395/405/420-104□ 100 3950/4050/4200
XXMFS-420/425-204□ 200 4200/4250
XXMFS-425/428-474□
470
4250/4280
XXMFS-440-504□ 500 4400
XXMFS-445/453-145□ 1400 4450/4530
