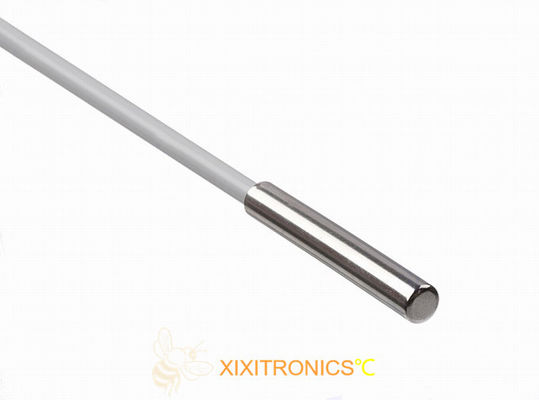

PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series

PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series
PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series

Large Image :  PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFT Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 50pcs / bundle
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series

Description
Chip: DS18B20 Original Probe: 6*30mm SUS , Size Can Be Customized
Temperature Range: -55℃~+105℃ Accuracy: -10℃~+80℃ , ±0.5℃
Wire: PVC Cable , Can Be Customized Connector: XH, SM, 5264, 2510, 5556 Connector Recommended
High Light:

PVC ds18b20 temperature sensor

,

ds18b20 temperature sensor

,

PVC 18b20 temp sensor

DS18B20 Temperature Sensor for Medical Ventilator MFT-410 Series



Brief Introduction:

This kind of digital temperature sensor adopts DS18B20 chip as the media to detect the temperatre. The working temperature range is -55℃~+105℃, the deviation is ±0.5℃ at the temperature range of -10℃~+80℃.

The product adopts food-grade SS304 tube as a housing, greysheathed cable as a conductor and epoxy resin for an encapsulation, the size of SS304 housing is 6*30mm, the length of cable is 1500mm.

DS18B20 output signal has high stability and without attenuation though the transmission distance is far; It is suitable for long-distance, multi-point temperature detection. The measurement results are serially transmitted in 9-12 digits, with stable, long-service-life, strong anti-interference performance.



Features:

1. Food-grade SS304 housing, size and appearance can be customized according to the installation structure

2. Digital signal output, high precision, excellent moisture resistance, stable performance
3. Accuracy: the deviation is 土0.5°C at the range of -10°C ~+80℃
4. Operating temperature range -55°℃ ~+105℃
5. lt is suitable for long-distance, multi-point temperature detection

6. PVC wire or sleeved cable is recommended
7. XH, SM, 5264, 2510 or 5556 connector is recommended

8. Product is compatible with REACH and RoHS certifications

9. SS304 material is compatible with FDA and LFGB certifications.



Applications:
Medical Ventilator, Oxy-generator

Temperature controller of Incubator

 Wine cellar, Greenhouse, Air conditioner,
 Instrumentation, Refrigerated Truck

 Flue-cured tobacco, Granary,
GMP temperature detection system for Pharmaceutical factory



Dimensions:



PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series 0     PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series 1



PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series 2     PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series 3




Working Show :



PVC Cable DS18B20 Temperature Sensor For Medical Ventilator MFT-410 Series 4
