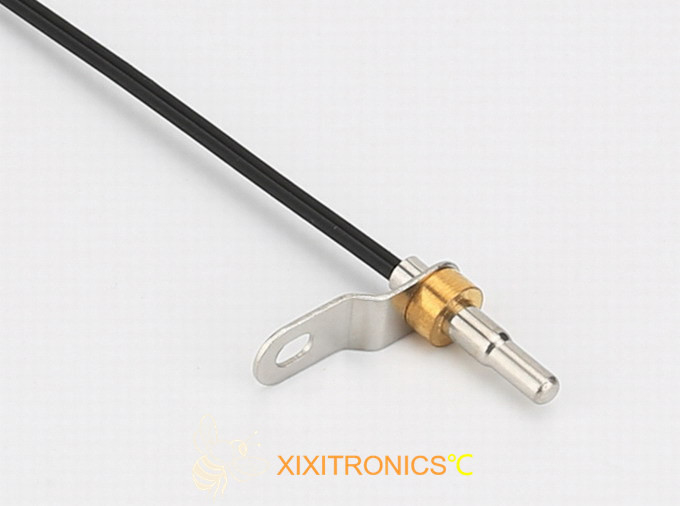

Electronic Kettle Bullet 10k Temperature Probe MFB-8 Series 10k Ntc Probe

10K Temperature Probe for Coffee Machine, Electronic Kettle , Milk Foam Machine, Milk Warmer MFB-8 Series

Brief Introduction:
MFB-8 series, with characteristics of small size, high precision and fast response, are widely used for coffee machine, electric kettle, milk foam machine, milk heater, heating component of direct drinking machine and other fields with high sensitivity of temperature measurement.
MFB-8 series are with excellent temperature resistance, can be used up to 180℃, prevent over heating and dry burning from damaging the electrical parts of products. Minimum ф 2.1mm is a available for sensing part of encapsulated NTC thermistor, through process controlling of internal high thermal conductivity medium, to ensure the product thermal time constant τ(63.2%)≦2 seconds.
MFB-8 series is designed with ground terminal piece to avoid electricity leakage , in accord with UL safety and so on.

Features:

■ High Sensitivity and the Fastest thermal response

■ Good waterproof performance , moisture and high temperature resistance.

■ A radial glass-encapsulated thermistor element is sealed with epoxy resin , easy to install, can be customized.
■ Proven long term Stability , Reliability, and High Durability , Excellent performance of voltage resistance.

■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

■ Products are in accordance with the RoHS, REACH certification.

Applications:

■ Coffee Machine, Electric Kettle, Milk Foam Machine, Milk Warmer
■ Standard water temperature sensor for home appliances
■ Water heaters, Heat Pump and Coffee Makers (water)
■ Warm-water Bidet Toilets (instant inlet water)

■ Covers the whole water temperature range, wide application range

Characteristics:

1. Recommendation as follows:
    R25℃=10KΩ±1%, B25/85℃=3435K±1% or
    R25℃=50KΩ±1% , B25/50℃=3950K±1 or
    R25℃=100KΩ±1%, B25/50℃=3950K±1%
2. Working temperature range: -30℃～+105℃ or -30℃～+150℃ or -30℃～+180℃

3.Thermal time constant 0.5-3 sec.(in stirred water)

4. Insulation voltage 1800VAC,2sec.
5. Insulation resistance 500VDC ≥100M ω
6. Cable customized ,PVC, XLPE, teflon cable is recommended
7. Connectors are recommended for PH,XH,SM,5264 and so on
8. Above characteristics all can be customized

Dimensions:

Product specification:
