DS18B20 Temperature Sensor for Medical Ventilator MFT-410 Series

Brief Introduction:

This kind of digital temperature sensor adopts DS18B20 chip as the media to detect the temperatre. The working temperature range is -55℃～+105℃, the deviation is ±0.5℃ at the temperature range of -10℃～+80℃.

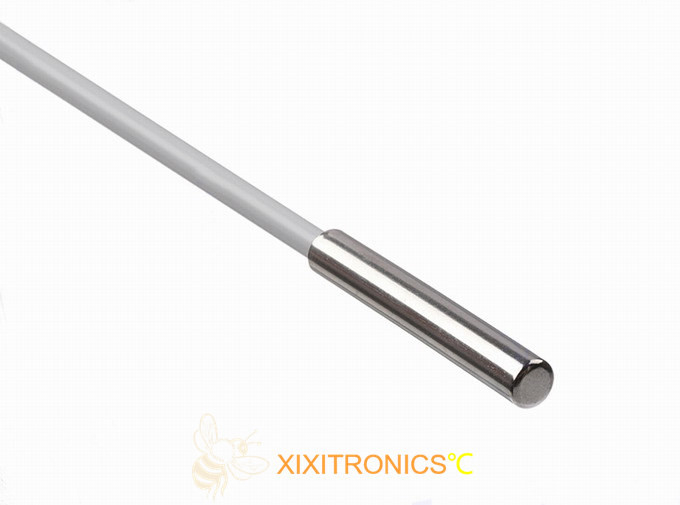

The product adopts food-grade SS304 tube as a housing, greysheathed cable as a conductor and epoxy resin for an encapsulation, the size of SS304 housing is 6*30mm, the length of cable is 1500mm.

DS18B20 output signal has high stability and without attenuation though the transmission distance is far; It is suitable for long-distance, multi-point temperature detection. The measurement results are serially transmitted in 9-12 digits, with stable, long-service-life, strong anti-interference performance.

Features:

1.Food-grade SS304 housing, size and appearance can be customized according to the installation structure

2.Digital signal output, high precision, excellent moisture resistance, stable performance
3.Accuracy: the deviation is 土0.5°C at the range of -10°C ~+80℃
4.Operating temperature range -55°℃ ~+105℃
5.lt is suitable for long-distance, multi-point temperature detection

6.PVC wire or sleeved cable is recommended
7.XH, SM, 5264, 2510 or 5556 connector is recommended

8.Product is compatible with REACH and RoHS certifications

9.SS304 material is compatible with FDA and LFGB certifications.

Applications:
■ Medical Ventilator, Oxy-generator

■ Temperature controller of Incubator

■ Wine cellar, Greenhouse, Air conditioner,
■ Instrumentation, Refrigerated Truck

■ Flue-cured tobacco, Granary,
■ GMP temperature detection system for Pharmaceutical factory


Dimensions:

Working Show :
