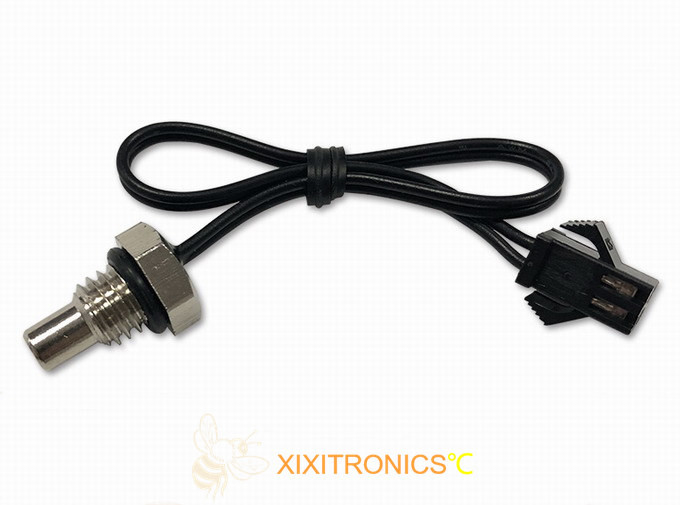

Quick Response Ntc Thermistor Temperature Sensor MFP-S6 Series

Quick Response Ntc Thermistor Temperature Sensor MFP-S6 Series
Quick Response Ntc Thermistor Temperature Sensor MFP-S6 Series

Large Image :  Quick Response Ntc Thermistor Temperature Sensor MFP-S6 Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFP-S6 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 20pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

Quick Response Ntc Thermistor Temperature Sensor MFP-S6 Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Quick ntc thermistor temperature sensor

,

MFP ntc thermistor temperature sensor

,

MFP thermistor temperature sensor

Quick Response Water Heater Coffee Machine Temperature Home Appliance Sensors MFP-S6 Series



Brief Introduction:
MFP-S6 series adopts moisture-proof epoxy resin for sealing process. It can be customized according to customer requirements like dimensions, appearance, characteristics and so on. Such customization will help customer easy install easily. This series have stable and reliable performance, high temperature sensitivity.



Features:
To install and fixed by screw thread , easy to install, size can be customized

A glass thermistor is sealed with epoxy resin, moisture and high temperature resistance.
Proven long term Stability and Reliability ,wide range of applications
Excellent performance of voltage resistance.

Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

Products are in accordance with the RoHS, REACH certification.


Applications:

 Water Heater,

■ Quick heat treatment faucet

■ Shower compartment

Hot water boiler tanks, Commercial coffee machine
Automobile engines (solid), engine oil (oil), radiators (water)


Characteristics:

1. Recommendation as follows:
    R25℃=10KΩ±1% B25/50℃=3950K±1% or
    R25℃=50KΩ±1% B25/50℃=3950K±1% or
    R25℃=100KΩ±1% B25/50℃=3950K±1%
2. Working temperature range:  -30℃~+105℃
3. Thermal time constant: MAX. 10sec.

4. Insulation voltage: 1800VAC, 2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. PVC or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized



Dimensions:



Quick Response Ntc Thermistor Temperature Sensor MFP-S6 Series 0     Quick Response Ntc Thermistor Temperature Sensor MFP-S6 Series 1



 Quick Response Ntc Thermistor Temperature Sensor MFP-S6 Series 2



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFP-S-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




Max10 typical in stirred water




-30~105
-30~150
-30~180

XXMFP-S-338/350-202□
2
3380/3500
XXMFP-S-327/338-502□ 5 3270/3380/3470
XXMFP-S-327/338-103□
10
3270/3380
XXMFP-S-347/395-103□ 10 3470/3950
XXMFP-S-395-203□
20
3950
XXMFP-S-395/399-473□ 47 3950/3990
XXMFP-S-395/399/400-503□
50
3950/3990/4000
XXMFP-S-395/405/420-104□ 100 3950/4050/4200
XXMFP-S-420/425-204□ 200 4200/4250
XXMFP-S-425/428-474□
470
4250/4280
XXMFP-S-440-504□ 500 4400
XXMFP-S-445/453-145□ 1400 4450/4530
