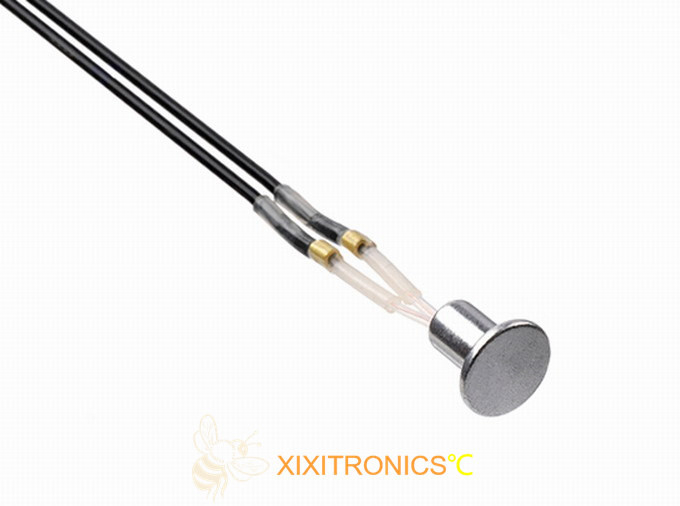

Surface Contact NTC Temperature Sensor For Coffee Machine

Surface Contact NTC Temperature Sensor For Coffee Machine
Surface Contact NTC Temperature Sensor For Coffee Machine

Large Image :  Surface Contact NTC Temperature Sensor For Coffee Machine

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFP-1501 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 20pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

Surface Contact NTC Temperature Sensor For Coffee Machine

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Surface Contact NTC Temperature Sensor

,

Coffee Machine NTC Temperature Sensor

Surface Contact Temperature Sensors for Coffee Machine, Heating Assembly of Direct Drinking Machine,Other Home Appliance



Brief Introduction:

MFP-15 series adopts process technology of surface contact to detect the temperature and uses moisture-resistant epoxy resin for sealing.

All products can be customized according to customers’ requirements, like materials, dimensions, appearance, processing technology and characteristics, and so on. The custom-made design can help customer install easily.

This series product has excellent performance in stability, reliability and sensitivity, can comply with environmental requirements and export requirements.



Features:
Easy installation, and the products can be customized according to your every single requirement.

A glass thermistor is sealed with epoxy resin. Good resistance of moisture and high temperature.
Proven long term Stability and Reliability ,wide range of applications

■ High sensitivity of measuring temperature
Excellent performance of voltage resistance.

Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

Products are in accordance with the RoHS, REACH certification.


Applications:

 Coffee Machine, Heating Assembly of Direct Drinking Machine

■ Milk Foam Machine, Milk Warmer

Electric oven, Electric Baked Plate

Hot water boiler tanks, Water Heater
Automobile engines (solid), engine oil (oil), radiators (water)



Characteristics:

1. Recommendation as follows:
    R25℃=50KΩ±1% B25/50℃=3950K±1% or
    R25℃=100KΩ±1% B25/50℃=3950K±1%
2. Working temperature range:
   -30℃~+200℃ or

   -30℃~+250℃ or

   -30℃~+300℃
3. Thermal time constant: MAX.10sec.

4. Insulation voltage: 1500VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized



Dimensions:



Surface Contact NTC Temperature Sensor For Coffee Machine 0     Surface Contact NTC Temperature Sensor For Coffee Machine 1



 Surface Contact NTC Temperature Sensor For Coffee Machine 2



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFP-S-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




Max10 typical in stirred water




-30~200
-30~250
-30~300

XXMFP-S-338/350-202□
2
3380/3500
XXMFP-S-327/338-502□ 5 3270/3380/3470
XXMFP-S-327/338-103□
10
3270/3380
XXMFP-S-347/395-103□ 10 3470/3950
XXMFP-S-395-203□
20
3950
XXMFP-S-395/399-473□ 47 3950/3990
XXMFP-S-395/399/400-503□
50
3950/3990/4000
XXMFP-S-395/405/420-104□ 100 3950/4050/4200
XXMFP-S-420/425-204□ 200 4200/4250
XXMFP-S-425/428-474□
470
4250/4280
XXMFP-S-440-504□ 500 4400
XXMFP-S-445/453-145□ 1400 4450/4530
