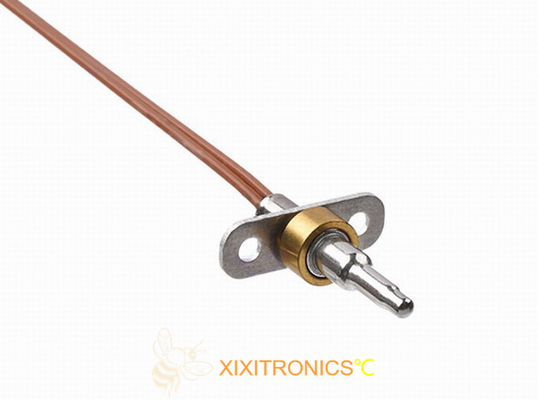

High Sensitive Bullet Ntc Type Temperature Sensor Waterproof For Milk Heater , Electric Kettle MFB-8 Series

High Sensitive Bullet Ntc Type Temperature Sensor Waterproof For Milk Heater , Electric Kettle MFB-8 Series
High Sensitive Bullet Ntc Type Temperature Sensor Waterproof For Milk Heater , Electric Kettle MFB-8 Series

Large Image :  High Sensitive Bullet Ntc Type Temperature Sensor Waterproof For Milk Heater , Electric Kettle MFB-8 Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFB-8 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle , 50pcs / bundle
Delivery Time: 5-12 work days
Payment Terms: T/T
Supply Ability: 8 Million Pieces Per Year

High Sensitive Bullet Ntc Type Temperature Sensor Waterproof For Milk Heater , Electric Kettle MFB-8 Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

ntc type temperature sensor Waterproof

,

Bullet ntc type temperature sensor

High Sensitive Bullet Waterproof NTC Temperature Sensor for Milk Foam Machine, Milk Heater, Electric Kettle MFB-8 Series



Brief Introduction:
MFB-8 series, with characteristics of small size, high precision and fast response, are widely used for coffee machine, electric kettle, milk foam machine, milk heater, heating component of direct drinking machine and other fields with high sensitivity of temperature measurement.
MFB-8 series are with excellent temperature resistance, can be used up to 180℃, prevent over heating and dry burning from damaging the electrical parts of products. Minimum ф 2.1mm is a available for sensing part of encapsulated NTC thermistor, through process controlling of internal high thermal conductivity medium, to ensure the product thermal time constant τ(63.2%)≦2 seconds.
MFB-8 series is designed with ground terminal piece to avoid electricity leakage , in accord with UL safety and so on.



Features:

High Sensitivity and the Fastest thermal response

Good waterproof performance , moisture and high temperature resistance.

■ A radial glass-encapsulated thermistor element is sealed with epoxy resin , easy to install, can be customized.
Proven long term Stability , Reliability, and High Durability , Excellent performance of voltage resistance.

 Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

 Products are in accordance with the RoHS, REACH certification.



Applications:

Coffee machine, Electric Kettle, Water purifie

Milk Foam Machine, Milk Warmer

Water Heater, Hot water boiler tanks, Heat Pump
Automobile engines (solid), engine oil (oil), radiators (water)
Intelligent Closestool ,Warm-water Bidet Toilets (instant inlet water)

Covers the whole water temperature range, wide application range



Characteristics:

1. Recommendation as follows:
    R25℃=10KΩ±1%, B25/85℃=3435K±1% or
    R25℃=50KΩ±1% , B25/50℃=3950K±1 or
    R25℃=100KΩ±1%, B25/50℃=3950K±1%

2. Working temperature range: -30℃~+105℃ or -30℃~+150℃ or -30℃~+180℃

3.Thermal time constant 0.5-3 sec.

4. Insulation voltage 1800VAC,2sec.
5. Insulation resistance 500VDC ≥100M ω
6. Cable customized ,PVC, XLPE, teflon cable is recommended
7. Connectors are recommended for PH,XH,SM,5264 and so on
8. Above characteristics all can be customized



Dimensions:



Water Heaters / Bidet Toilets Temperature Sensors MFB Series 0 Water Heaters / Bidet Toilets Temperature Sensors MFB Series 1



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFB-10-102□ 1 3200




1.5 - 4.8 typical in stirred water




0.5 - 3
typical in stirred water




-30~105
-30~150
-30~180
XXMFB-338/350-202□
2
3380/3500
XXMFB-327/338-502□ 5 3270/3380/3470
XXMFB-327/338-103□
10
3270/3380
XXMFB-347/395-103□ 10 3470/3950
XXMFB-395-203□
20
3950
XXMFB-395/399-473□ 47 3950/3990
XXMFB-395/399/400-503□
50
3950/3990/4000
XXMFB-395/405/420-104□ 100 3950/4050/4200
XXMFB-420/425-204□ 200 4200/4250
XXMFB-425/428-474□
470
4250/4280
XXMFB-440-504□ 500 4400
XXMFB-445/453-145□ 1400 4450/4530
