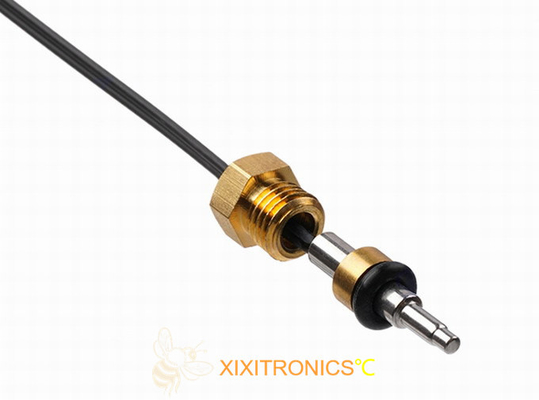

100K Temperature Sensor for Boilers , Coffee Machine , Water Heater MFB-6 Series

100K Temperature Sensor for Boilers , Coffee Machine , Water Heater MFB-6 Series
100K Temperature Sensor for Boilers , Coffee Machine , Water Heater MFB-6 Series

Large Image :  100K Temperature Sensor for Boilers , Coffee Machine , Water Heater MFB-6 Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFB-6 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 50pcs / bundle
Delivery Time: 5-12 work days
Payment Terms: T/T
Supply Ability: 8 Million Pieces Per Year

100K Temperature Sensor for Boilers , Coffee Machine , Water Heater MFB-6 Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Water Heater 100k temperature sensor

,

Boilers 100k temperature sensor

,

Boilers 100k ohm ntc thermistor

100K Temperature Sensor Boilers, Coffee Machine, Water Heater, Water Purifie Temperature Sensor MFB-6 Series

Brief Introduction:
MFB-6 series adopts moisture-proof epoxy resin for sealing process. It can be customized according to customer requirements like dimensions, appearance, characteristics and so on. Such customization will help customer easy install easily. This series have stable and reliable performance, high temperature sensitivity.



Features:

High Sensitivity and the Fastest thermal response

Good waterproof performance , moisture and high temperature resistance

A radial glass-encapsulated thermistor element is sealed with epoxy resin, Excellent performance of voltage resistance.
Proven long term Stability ,Reliability, and High Durability

Easy to install, and can be customized according to your every single requirement

Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

Products are in accordance with the RoHS, REACH certification



Applications:

■ Water Heater, Coffee Machine, Water Purifie
Electric Kettle, Heat Pump and Coffee Makers (water)
Warm-water Bidet Toilets (instant inlet water)

■ Covers the whole water temperature range, wide application range



Characteristics:

1. Recommendation as follows:
    R25℃=10KΩ±1%, B25/85℃=3435K±1% or
    R25℃=50KΩ±1% , B25/50℃=3950K±1 or
    R25℃=100KΩ±1%, B25/50℃=3950K±1%

2. Working temperature range:

    -30℃~+105℃ or

    -30℃~+150℃ or

    -30℃~+180℃

3.Thermal time constant 0.5-3 sec.(in stirred water)

4. Insulation voltage 1800VAC,2sec.
5. Insulation resistance 500VDC ≥100M ω
6. Cable customized ,PVC, XLPE, teflon cable is recommended
7. Connectors are recommended for PH,XH,SM,5264 and so on
8. Above characteristics all can be customized



Dimensions:



Water Heaters / Bidet Toilets Temperature Sensors MFB Series 0 Water Heaters / Bidet Toilets Temperature Sensors MFB Series 1



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFB-10-102□ 1 3200




1.5 - 4.8 typical in stirred water




0.5 - 3
typical in stirred water




-30~105
-30~150
-30~180
XXMFB-338/350-202□
2
3380/3500
XXMFB-327/338-502□ 5 3270/3380/3470
XXMFB-327/338-103□
10
3270/3380
XXMFB-347/395-103□ 10 3470/3950
XXMFB-395-203□
20
3950
XXMFB-395/399-473□ 47 3950/3990
XXMFB-395/399/400-503□
50
3950/3990/4000
XXMFB-395/405/420-104□ 100 3950/4050/4200
XXMFB-420/425-204□ 200 4200/4250
XXMFB-425/428-474□
470
4250/4280
XXMFB-440-504□ 500 4400
XXMFB-445/453-145□ 1400 4450/4530
