TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series

TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series
TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series

Large Image :  TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFT-O Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 10pcs / bundle, 50pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year

TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

TPE Injection waterproof temp sensor

,

IP68 waterproof temp sensor

,

IP68 waterproof digital temperature sensor

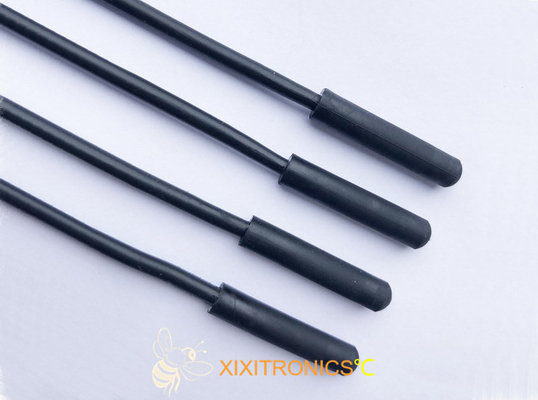

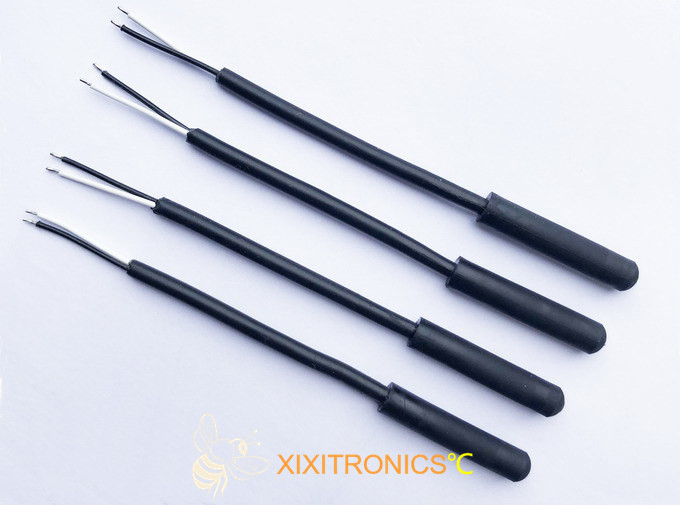

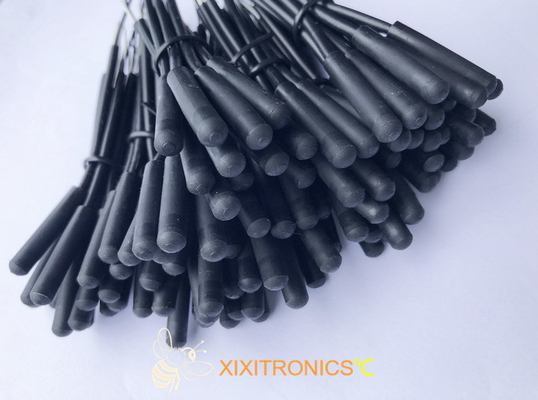

TPE Injection Overmolding IP68 Waterproof Temperature Sensors MFT-O Series



Features:
IP68 Rated , Consistent dimension of molded probe head
TPE Injection Over-molded probe
Proven long term Stability and Reliability
High Sensitivity and Fast thermal response



Applications:
Air-conditioners (room and outdoor air)
Automobile air conditioners & heaters
Electric water boilers and water heater tanks (surface)
Fan heaters



Dimensions:



TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series 0     TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series 1



TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series 2     TPE Injection Overmolding IP68 Waterproof Temp Sensor MFT-O Series 3



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFT-O-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




5 - 7   typical in stirred water





-30~105
XXMFT-O-338/350-202□
2
3380/3500
XXMFT-O-327/338-502□ 5 3270/3380/3470
XXMFT-O-327/338-103□
10
3270/3380
XXMFT-O-347/395-103□ 10 3470/3950
XXMFT-O-395-203□
20
3950
XXMFT-O-395/399-473□ 47 3950/3990
XXMFT-O-395/399/400-503□
50
3950/3990/4000
XXMFT-O-395/405/420-104□ 100 3950/4050/4200
XXMFT-O-420/425-204□ 200 4200/4250
XXMFT-O-425/428-474□
470
4250/4280
XXMFT-O-440-504□ 500 4400
XXMFT-O-445/453-145□ 1400 4450/4530
