IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response

IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response
IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response

Large Image :  IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFT-O Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle, 50pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year

IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

NTC Temperature Sensor Small Size

,

IP68 NTC Temperature Sensor

,

NTC Waterproof Temperature Sensors

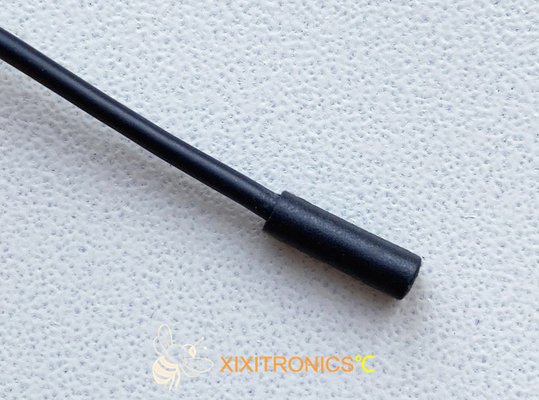

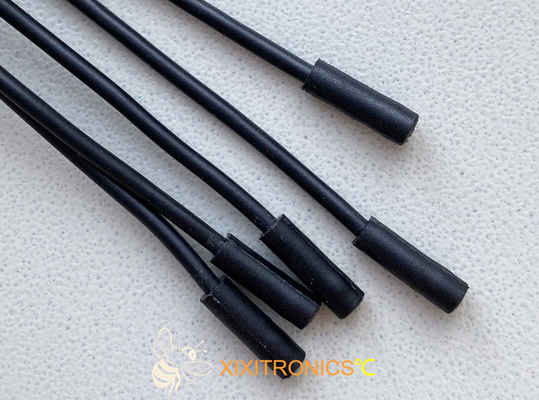

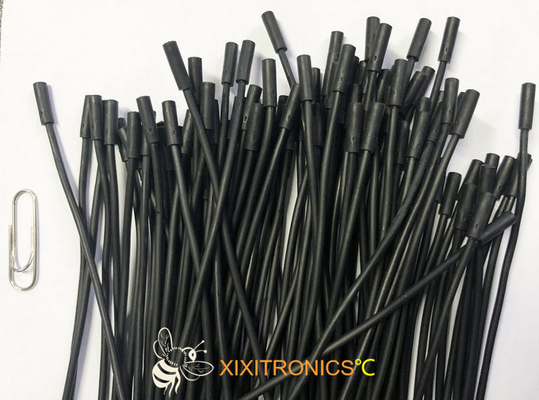

Small Size IP68 Waterproof TPE Injection Over-Molded Temperature probe MFT-O Series



Features:
IP68 Rated , small size of the probe head
TPE Injection Over-molded probe with
Consistent dimension head
High Sensitivity and Fast thermal response



Applications:
Air-conditioners (room and outdoor air)
Automobile air conditioners & heaters
Electric water boilers and water heater tanks (surface)
Fan heaters

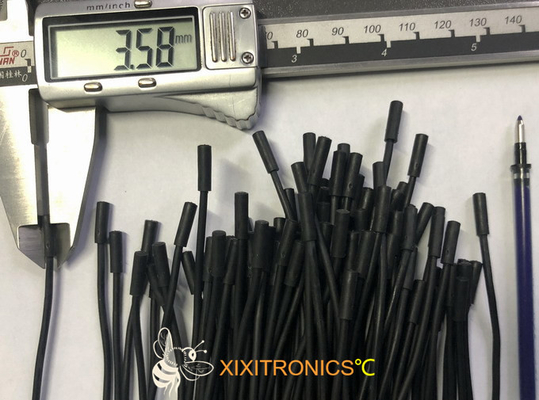

Dimensions:



IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response 0     IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response 1



IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response 2     IP68 Waterproof NTC Temperature Sensors Probe Small Size High Sensitivity and Rapid Response 3



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFT-O-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




5 - 7   typical in stirred water





-30~105
XXMFT-O-338/350-202□
2
3380/3500
XXMFT-O-327/338-502□ 5 3270/3380/3470
XXMFT-O-327/338-103□
10
3270/3380
XXMFT-O-347/395-103□ 10 3470/3950
XXMFT-O-395-203□
20
3950
XXMFT-O-395/399-473□ 47 3950/3990
XXMFT-O-395/399/400-503□
50
3950/3990/4000
XXMFT-O-395/405/420-104□ 100 3950/4050/4200
XXMFT-O-420/425-204□ 200 4200/4250
XXMFT-O-425/428-474□
470
4250/4280
XXMFT-O-440-504□ 500 4400
XXMFT-O-445/453-145□ 1400 4450/4530
