Product Details:
Place of Origin: China
Brand Name: Hfsensing, FDI
Certification: AS9100,ISO9001 ilac-MRA
Model Number: EPSILON Series
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Plastic fixture inside
Delivery Time: 7-21 work days
Payment Terms: T/T
Supply Ability: 50K pcs / Month

Network NTRIP Base Station Inertial Navigation Sensor Support Chihiro Location Obtain Differential Correction Data

Description
High Light:

Network Inertial Navigation Sensor

,

NTRIP Inertial Navigation Sensor

Connect Network NTRIP Base Station Support Chihiro Location Obtain Differential Correction Data, Network Remote Upgrade



Inertial Satellite Integrated Navigation System INS / RTK



Brief Introduction:

EPSILON* series is miniature inertial RTK satellite high-precision integrated navigation systems.
This series features centimeter-level positioning, dual-antenna direction finding capabilities, redundant sensor technology, and a heading gyroscope with a zero-bias stability of 2 ° /h, providing a complete set of applications for high-precision positioning and stable attitude and heading requirements. solution.
The series includes single-antenna RTK, dual-antenna direction finding and support for 4G connection Chihiro location service functions, a total of five models. The whole series adopts sturdy metal shell and military-grade plug, IP68 protection level.

Equipped with the industry-leading adaptive SPKF nonlinear data fusion integrated navigation algorithm, after professional inertia calibration and temperature error compensation of -40℃~80℃, the adaptive installation parameter identification algorithm and powerful interface software are convenient to use immediately.



Features:
Dual-frequency RTK centimeter-level positioning, dual-antenna direction finding, support network RTK
Redundant gyro technology for enhanced stability
Stable position angle output, 1cm position accuracy, heading angle 0.1˚ RMS
Gyro Bias Stability 2˚/hr ( <2°/hr relative heading )
Bias, scale factor, orthogonality temperature factory calibration
Conical rowing compensation, adaptive SPKF
RTK base station mode
16G memory Log FFT notch filter
ITAR-free MADE IN CHINA

 Tactical Grade Array Sensor
 2D/3DMagnetic calibration
 Odometer/sonar/radar external auxiliary interface
 4G Netcom/Radio version



Each EPSILON series product has a new, miniature, high-performance, factory-calibrated IMU core,magnetometer and one or two RTK receivers, using external access or self-built network RTCM data stream input,The whole system has the same inertial navigation system, which outputs high-precision PVT navigation data.

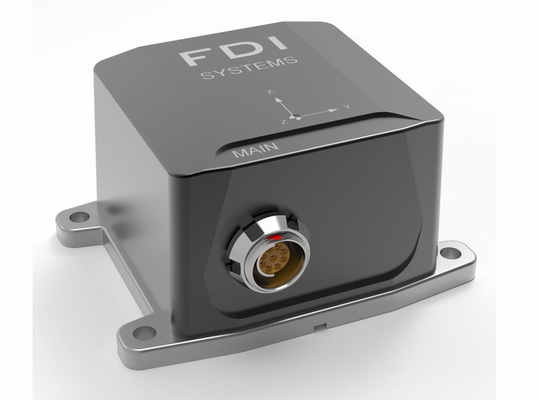

EPSILON-A is an IMU and AHRS;

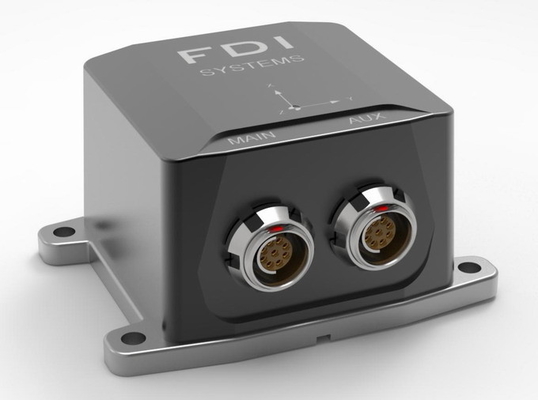

EPSILON-E supports an integrated navigation system with external GNSS and other auxiliary sources;

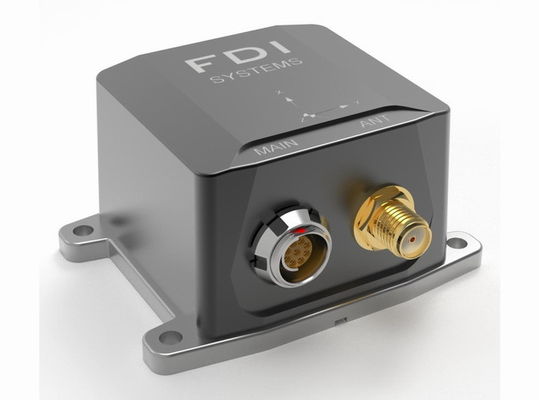

EPSILON-N has a built-in single-antenna L1/L2 dual-frequency GNSS receiver, providing a combined positioning accuracy of about 1m;

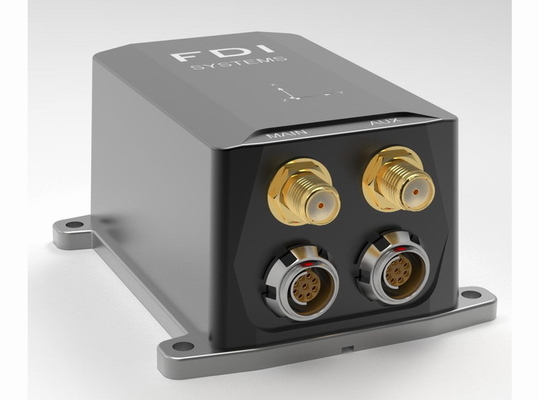

EPSILON-D The built-in dual-antenna differential GNSS can provide centimeter-level positioning and dual-antenna lateral function;

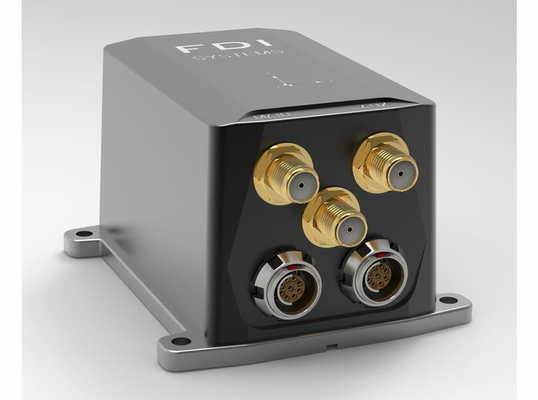

EPSILON-D4G is an upgrade of the D version, which can connect to the network NTRIP base station through the built-in 4G device to obtain differential correction data, and has the network remote upgrade function.

Network NTRIP Base Station Inertial Navigation Sensor Support Chihiro Location Obtain Differential Correction Data 0



Characteristics:

The Epsilon family of sensors includes two independent triaxial gyroscopes, two triaxial accelerometers, triaxial magnetometer arrays, barometers, and thermometers with a powerful SPKF, and a set of Tight integrated navigation algorithms, up to 1000Hz sensor sampling frequency and cone and row motion compensation, online estimation of sensor errors, identification of outliers and measurement anomalies and isolation of faults,structured magnetic field detection and compensation, With anti-magnetic interference ability.
Our algorithm provides high-precision position, which can be easily connected to external vision, sonar/radar and other speed, position, and heading auxiliary equipment for integrated navigation. Users of Epsilon series products can independently configure the built-in dynamic model of the system, and adjust parameters through the interface software to improve the accuracy and stability of navigation.

Network NTRIP Base Station Inertial Navigation Sensor Support Chihiro Location Obtain Differential Correction Data 1
