Product Details:
|
| R 25℃: | 0.5KΩ-2 MΩ | B Value: | 3200-4200K |
|---|---|---|---|
| R Tolerance: | 0.5%, 1% , 2% , 3% , 5% | B Tolerance: | 0.5% , 1% , 2% , 3% |
| Highlight: | Telfon epoxy coated thermistors,Insulated epoxy coated thermistors,car seat heat sensor thermistors |
||

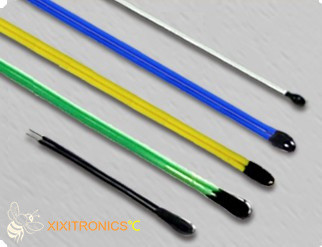

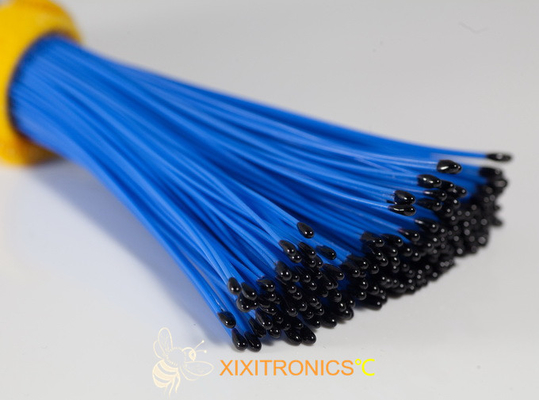

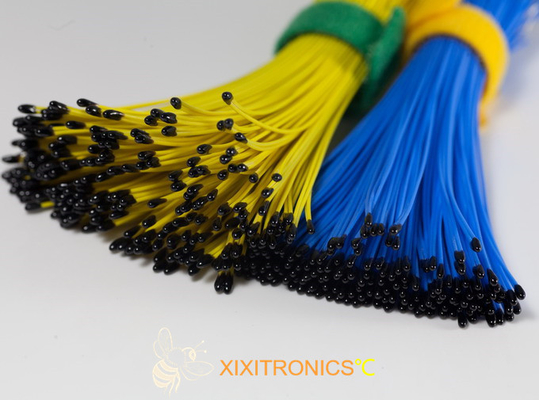

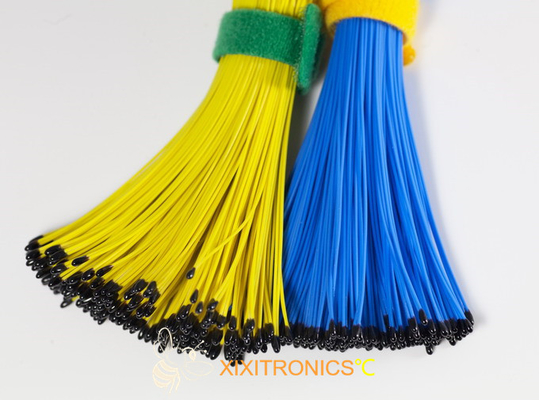

Telfon Insulated Epoxy Coated Thermistors Automobile MF5A-5 Series
Features:
■ Low cost , Small size
■ Proven long term Stability and Reliability
■ High Sensitivity and Fast thermal response
■ High accuracy and Interchangeability, Thermally Conductive Epoxy coated
Applications:
■ Automotive car seat heater control and engine management
■ Steering Wheel Heating, Rearview Mirror Heating
■ Temperature sensing , control and compensation
■ PCB board mounting for over temperature protection
■ General Instrumentation applications
Dimensions:
Product specification:
|
Specification
|
R25℃
(KΩ) |
B25/50℃
(K) |
Disspation Constant
(mW/℃) |
Time Constant
(S) |
Operation Temperature
(℃) |
| XXMF5A-5-310-102□ | 1 | 3200 |
0.75 - 3.0 typical in still air at 25℃
|
1 - 2 typical in liquids
|
-30～150
|
|
XXMF5A-5-338/350-202□
|
2
|
3380/3500 | |||
| XXMF5A-5-327/338-502□ | 5 | 3270/3380/3470 | |||
|
XXMF5A-5-327/338-103□
|
10
|
3270/3380 | |||
| XXMF5A-5-347/395-103□ | 10 | 3470/3950 | |||
|
XXMF5A-5-395-203□
|
20
|
3950 | |||
| XXMF5A-2-395/399-473□ | 47 | 3950/3990 | |||
|
XXMF5A-5-395/399/400-503□
|
50
|
3950/3990/4000 | |||
| XXMF5A-5-395/405/420-104□ | 100 | 3950/4050/4200 | |||
| XXMF5A-5-420/425-204□ | 200 | 4200/4250 | |||
|
XXMF5A-5-425/428-474□
|
470
|
4250/4280 | |||
| XXMF5A-5-440-504□ | 500 | 4400 | |||
| XXMF5A-5-445/453-145□ | 1400 | 4450/4530 |
