Epoxy Coated Automotive Temperature Sensor For Electric Vehicle BMS MFE Seires

Epoxy Coated Automotive Temperature Sensor For Electric Vehicle BMS MFE Seires
Epoxy Coated Automotive Temperature Sensor For Electric Vehicle BMS MFE Seires Epoxy Coated Automotive Temperature Sensor For Electric Vehicle BMS MFE Seires

Large Image :  Epoxy Coated Automotive Temperature Sensor For Electric Vehicle BMS MFE Seires

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFE Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 50pcs / bundle , 100pcs / bundle
Delivery Time: 5 - 10 work days
Payment Terms: T/T
Supply Ability: 1 Million pcs / Month

Epoxy Coated Automotive Temperature Sensor For Electric Vehicle BMS MFE Seires

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Epoxy Coated Automotive Temperature Sensor

,

BMS Automotive Temperature Sensor

,

Electric car temp sensor

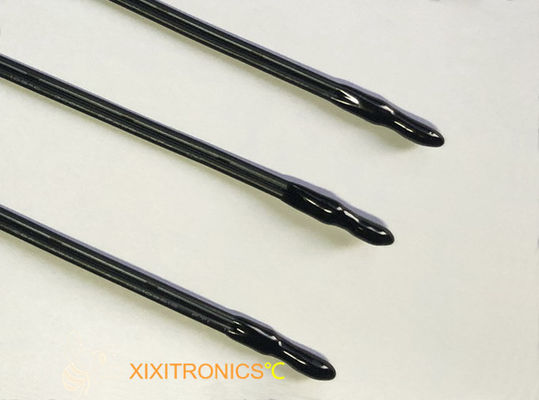

Epoxy Coated Temperature Sensors for Electric Vehicle BMS MFE Seires



Features:
A glass-encapsulated thermistor element is sealed with epoxy resin
Proven long term Stability and Reliability ,
Insulation voltage: 1800VAC,2sec ,
High Sensitivity and Fast thermal response ,Insulation resistance: 500VDC ≥100MΩ
Long and flexible leads for special mounting or assembly, PVC or XLPE cable is recommended

■ Connectors are recommended for PH,XH,SM,5264 and so on



Applications:
Air-conditioners (room and outdoor air)
Automobile air conditioners & heaters

■ New energy vehicle battery ( BMS ). Recommendation as follows:
     R0℃=6.65KΩ±1.5% B0/25℃=3914K±3.5% or
     R25℃=10KΩ±1% B25/50℃=3950K±1% or
     R25℃=10KΩ±1% B25/85℃=3435K±1%

Electric water boilers and water heater tanks (surface)
Fan heaters ,
ambient temperature detection



Dimensions:



Epoxy Coated Drop Head Temperature Sensors MFE Seires for Air Conditioning 0



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFE-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




5 - 7
typical in stirred water





-40~105
XXMFE-338/350-202□
2
3380/3500
XXMFE-327/338-502□ 5 3270/3380/3470
XXMFE-327/338-103□
10
3270/3380
XXMFE-347/395-103□ 10 3470/3950
XXMFE-395-203□
20
3950
XXMFE-395/399-473□ 47 3950/3990
XXMFE-395/399/400-503□
50
3950/3990/4000
XXMFE-395/405/420-104□ 100 3950/4050/4200
XXMFE-420/425-204□ 200 4200/4250
XXMFE-425/428-474□
470
4250/4280
XXMFE-440-504□ 500 4400
XXMFE-445/453-145□ 1400 4450/4530
