Product Details:
|
| R 25℃: | 2KΩ-2.3 MΩ | B Value: | 3200-4200K |
|---|---|---|---|
| R Tolerance: | 0.5% , 1% , 2% , 3% , 5% | B Tolerance: | 0.5% , 1% , 2% , 3% |
| High Light: | Engine Oil Threaded Temperature Sensor,Water Threaded Temperature Sensor,Threaded Temperature Sensor SS304 |
||

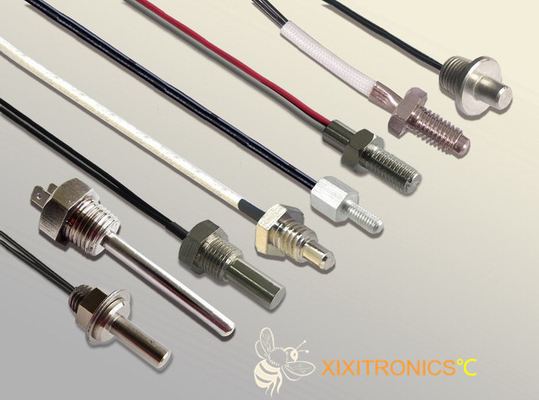

Coffee Machine , Boilers , Water Heater, Engine Oil Temperature sensors MFP-S Series
Features:
■ To install and fixed by screw thread , easy to install, size can be customized
■ A glass thermistor is sealed with epoxy resin, moisture and high temperature resistance.
■ Proven long term Stability and Reliability ,wide range of applications
■ Excellent performance of voltage resistance.
■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.
■ Products are in accordance with the RoHS, REACH certification.
Applications:
■ Commercial coffee machine
■ Hot water boiler tanks
■ Automobile engines (solid), engine oil (oil), radiators (water)
■ Soybean milk machine
■ Power system
Characteristics:
1. Recommendation as follows:
R25℃=50KΩ±1% B25/50℃=3950K±1% or
R25℃=100KΩ±1% B25/50℃=3950K±1%
2. Working temperature range: -30℃～+105℃ or -30℃～+150℃ or -30℃～+180℃
3. Thermal time constant: MAX.10sec.
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized
Dimensions:
Product specification:
|
Specification
|
R25℃
(KΩ) |
B25/50℃
(K) |
Disspation Constant
(mW/℃) |
Time Constant
(S) |
Operation Temperature
(℃) |
| XXMFP-S-10-102□ | 1 | 3200 |
approx. 2.2 typical in still air at 25℃
|
Max10 typical in stirred water
|
-30～105
-30～150
-30～180
|
|
XXMFP-S-338/350-202□
|
2
|
3380/3500 | |||
| XXMFP-S-327/338-502□ | 5 | 3270/3380/3470 | |||
|
XXMFP-S-327/338-103□
|
10
|
3270/3380 | |||
| XXMFP-S-347/395-103□ | 10 | 3470/3950 | |||
|
XXMFP-S-395-203□
|
20
|
3950 | |||
| XXMFP-S-395/399-473□ | 47 | 3950/3990 | |||
|
XXMFP-S-395/399/400-503□
|
50
|
3950/3990/4000 | |||
| XXMFP-S-395/405/420-104□ | 100 | 3950/4050/4200 | |||
| XXMFP-S-420/425-204□ | 200 | 4200/4250 | |||
|
XXMFP-S-425/428-474□
|
470
|
4250/4280 | |||
| XXMFP-S-440-504□ | 500 | 4400 | |||
| XXMFP-S-445/453-145□ | 1400 | 4450/4530 |
