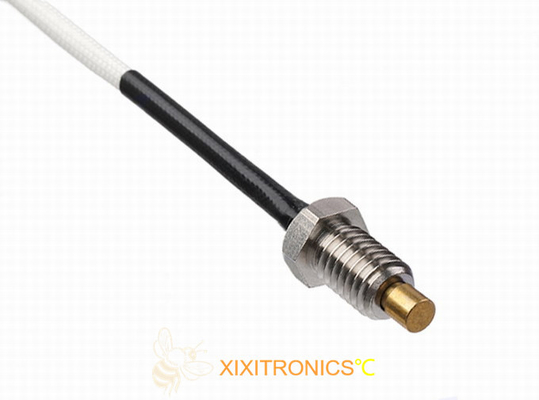

Quick Response NTC Temperature Sensor Or PT1000 Probe Or Thermocouple Sensor For Industrial Control Heating Plate

Quick Response NTC Temperature Sensor Or PT1000 Probe Or Thermocouple Sensor For Industrial Control Heating Plate
Quick Response NTC Temperature Sensor Or PT1000 Probe Or Thermocouple Sensor For Industrial Control Heating Plate

Large Image :  Quick Response NTC Temperature Sensor Or PT1000 Probe Or Thermocouple Sensor For Industrial Control Heating Plate

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFP-S30Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

Quick Response NTC Temperature Sensor Or PT1000 Probe Or Thermocouple Sensor For Industrial Control Heating Plate

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

PT1000 NTC Temperature Sensor

,

Threaded NTC Temperature Sensor

,

Quick Response NTC Temperature Sensor

High Precision Quick Response Temperature Sensor for Heating Components, Industrial Control, Heating Plate MFP-S3001



Brief Introduction:
MFP-S30 series adopts riveting to fix the temperature sensor, which have the simple constructure and better fixation. It can be customized according to th requirements of customers, such as dimensions, outline and characteristics, etc.

Movable copper screw can help the user install easily, M6 or M8 screw is recommended.The series using high accuracy chip,other high quality materials with advanced processing technology, which make the products have stable and reliable performance, high sensitivity of temperature measurement.



Features:
To install and fixed by screw thread, easy to install, shape and size can be customized according to installation structure

High precision of Resistance value and B value, good consistency
Proven long term Stability and Reliability ,wide range of applications
Excellent performance of voltage resistance.

Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

Products are in accordance with the RoHS, REACH certification.


Applications:

■ Commercial coffee machine

Heating components, industrial control
Automobile engines (solid), engine oil (oil), radiators (water)
 Heating plate, Instruments
Power system, Electric Power Equipment



Characteristics:

1. Recommendation as follows:
    R100℃=6.282KΩ±2% B100/200℃=4300K±2% or
    R200℃=1KΩ±3% B100/200℃=4537K±2% or
    PT100 / PT1000 or
    Thermocouple
2. Working temperature range: -30℃~+200℃

3. Thermal time constant: MAX.7sec.
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized



Dimensions:



Quick Response NTC Temperature Sensor Or PT1000 Probe Or Thermocouple Sensor For Industrial Control Heating Plate 0     Quick Response NTC Temperature Sensor Or PT1000 Probe Or Thermocouple Sensor For Industrial Control Heating Plate 1



 Quick Response NTC Temperature Sensor Or PT1000 Probe Or Thermocouple Sensor For Industrial Control Heating Plate 2



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFP-S-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




Max10 typical in stirred water





-30~200


XXMFP-S-338/350-202□
2
3380/3500
XXMFP-S-327/338-502□ 5 3270/3380/3470
XXMFP-S-327/338-103□
10
3270/3380
XXMFP-S-347/395-103□ 10 3470/3950
XXMFP-S-395-203□
20
3950
XXMFP-S-395/399-473□ 47 3950/3990
XXMFP-S-395/399/400-503□
50
3950/3990/4000
XXMFP-S-395/405/420-104□ 100 3950/4050/4200
XXMFP-S-420/425-204□ 200 4200/4250
XXMFP-S-425/428-474□
470
4250/4280
XXMFP-S-440-504□ 500 4400
XXMFP-S-445/453-145□ 1400 4450/4530
