Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series

Certification
China Hefei XIXI Electronics Co., ltd certification
China Hefei XIXI Electronics Co., ltd certification
I'm Online Chat Now

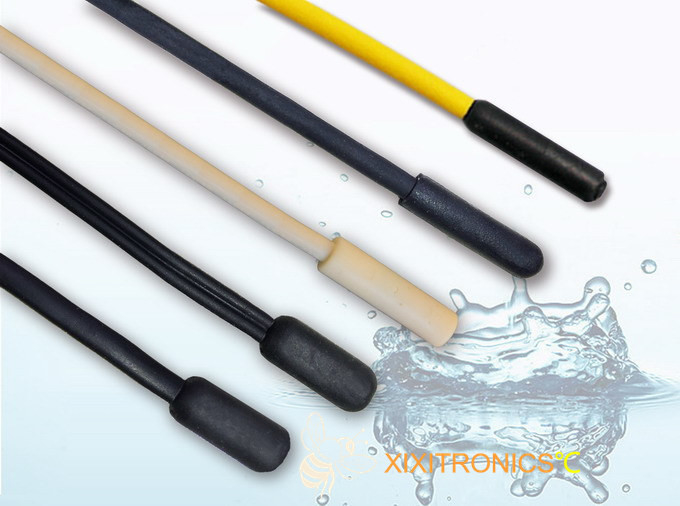

Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series

Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series
Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series

Large Image :  Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFT-O Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle, 50pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 8 Million Pieces Per Year

Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Stability waterproof temperature probe

,

IP68 waterproof temperature probe

IP68 TPE Injection Overmolding Temperature Probe MFT-O Series



Features:
IP68 Rated Waterproof , Consistent dimension of molded probe head
TPE Injection Over-molded probe
Proven long term Stability and Reliability
High Sensitivity and Fast thermal response



Applications:
Air-conditioners (room and outdoor air)
Automobile air conditioners & heaters
Electric water boilers and water heater tanks (surface)
Fan heaters



Dimensions:



Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series 0     Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series 1



Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series 2     Stability and Reliability IP68 Waterproof Temperature Probe TPE Injection Overmolding MFT-O Series 3



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFT-O-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




5 - 7   typical in stirred water





-30~105
XXMFT-O-338/350-202□
2
3380/3500
XXMFT-O-327/338-502□ 5 3270/3380/3470
XXMFT-O-327/338-103□
10
3270/3380
XXMFT-O-347/395-103□ 10 3470/3950
XXMFT-O-395-203□
20
3950
XXMFT-O-395/399-473□ 47 3950/3990
XXMFT-O-395/399/400-503□
50
3950/3990/4000
XXMFT-O-395/405/420-104□ 100 3950/4050/4200
XXMFT-O-420/425-204□ 200 4200/4250
XXMFT-O-425/428-474□
470
4250/4280
XXMFT-O-440-504□ 500 4400
XXMFT-O-445/453-145□ 1400 4450/4530
