Product Details:
|
| R 25℃: | 2KΩ-2.3 MΩ | B Value: | 3200-4200K |
|---|---|---|---|
| R Tolerance: | 0.5% , 1% , 2% , 3% , 5% | B Tolerance: | 0.5% , 1% , 2% , 3% |
| High Light: | Small Waterproof Temperature Sensors,IP68 water resistant temperature sensor |
||

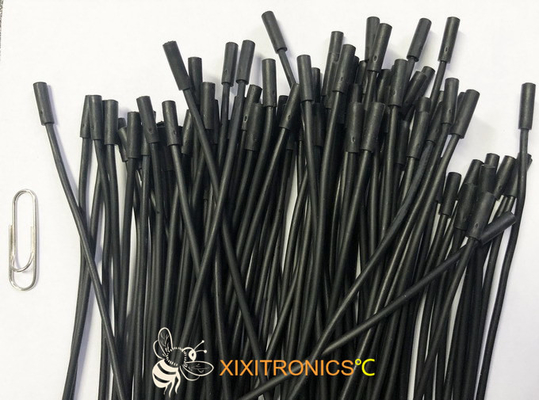

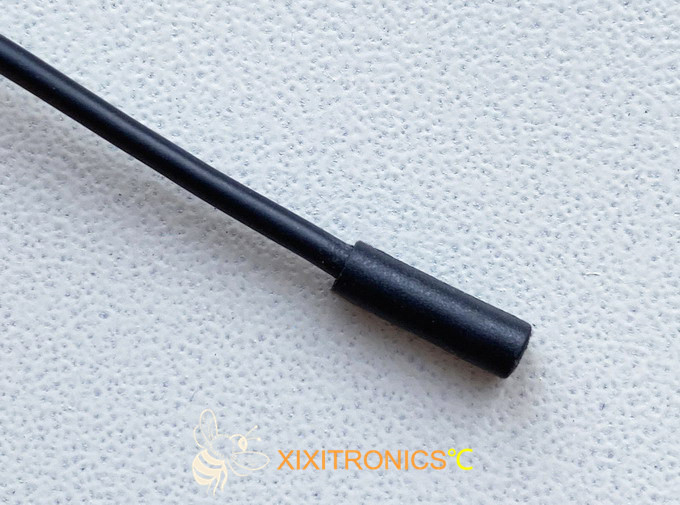

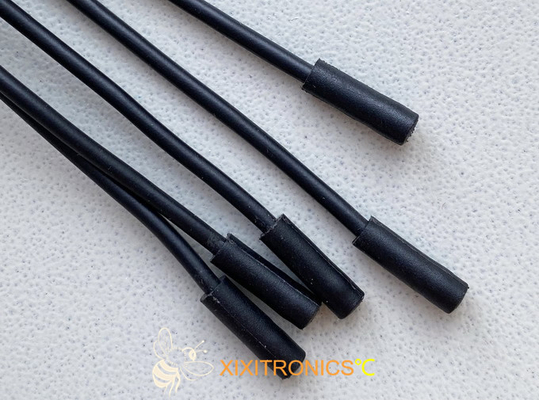

Small Size IP68 Waterproof TPE Injection Over-Molded Temperature probe MFT-O Series
Features:
■ IP68 Rated , small size of the probe head
■ TPE Injection Over-molded probe with Consistent dimension head
■ High Sensitivity and Fast thermal response
Applications:
■ Air-conditioners (room and outdoor air)
■ Automobile air conditioners & heaters
■ Electric water boilers and water heater tanks (surface)
■ Fan heaters
Dimensions:
Product specification:
|
Specification
|
R25℃
(KΩ) |
B25/50℃
(K) |
Disspation Constant
(mW/℃) |
Time Constant
(S) |
Operation Temperature
(℃) |
| XXMFT-O-10-102□ | 1 | 3200 |
approx. 2.2 typical in still air at 25℃
|
5 - 7 typical in stirred water
|
-30～105
|
|
XXMFT-O-338/350-202□
|
2
|
3380/3500 | |||
| XXMFT-O-327/338-502□ | 5 | 3270/3380/3470 | |||
|
XXMFT-O-327/338-103□
|
10
|
3270/3380 | |||
| XXMFT-O-347/395-103□ | 10 | 3470/3950 | |||
|
XXMFT-O-395-203□
|
20
|
3950 | |||
| XXMFT-O-395/399-473□ | 47 | 3950/3990 | |||
|
XXMFT-O-395/399/400-503□
|
50
|
3950/3990/4000 | |||
| XXMFT-O-395/405/420-104□ | 100 | 3950/4050/4200 | |||
| XXMFT-O-420/425-204□ | 200 | 4200/4250 | |||
|
XXMFT-O-425/428-474□
|
470
|
4250/4280 | |||
| XXMFT-O-440-504□ | 500 | 4400 | |||
| XXMFT-O-445/453-145□ | 1400 | 4450/4530 |
