Product Details:
|
| R 25℃: | 2KΩ-2.3 MΩ | B Value: | 3200-4200K |
|---|---|---|---|
| R Tolerance: | 0.5% , 1% , 2% , 3% , 5% | B Tolerance: | 0.5% , 1% , 2% , 3% |
| Probe: | CuΦ6*30 | Wire: | OD Φ3.3 |
| Highlight: | air conditioner temperature sensor 20K,air conditioner temperature sensor 3950,probe temperature sensor 20K 3950 |
||

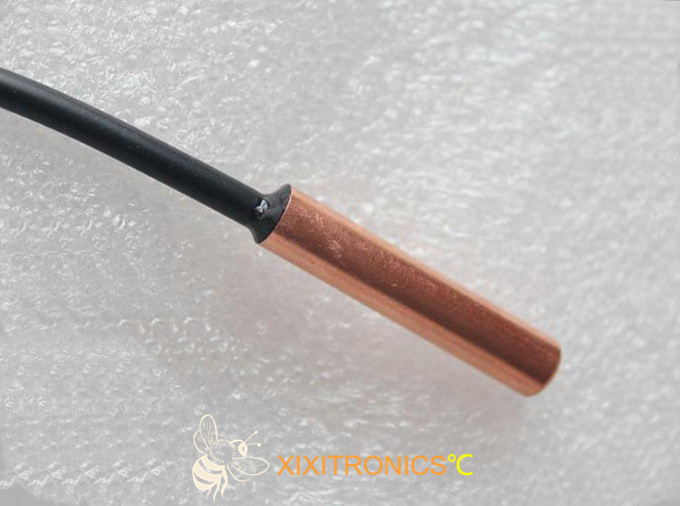

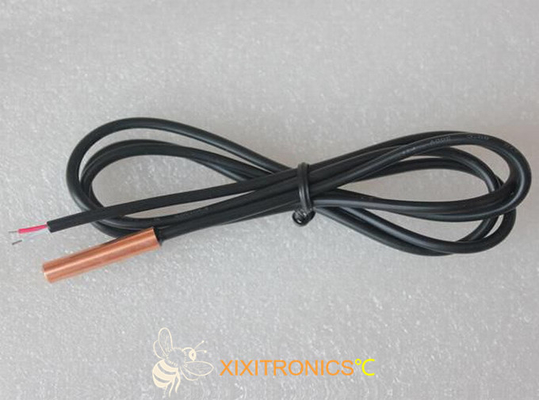

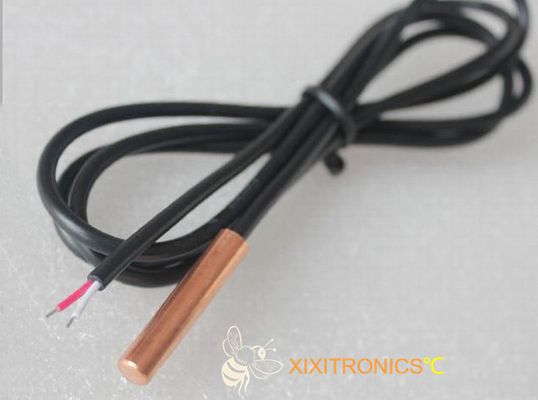

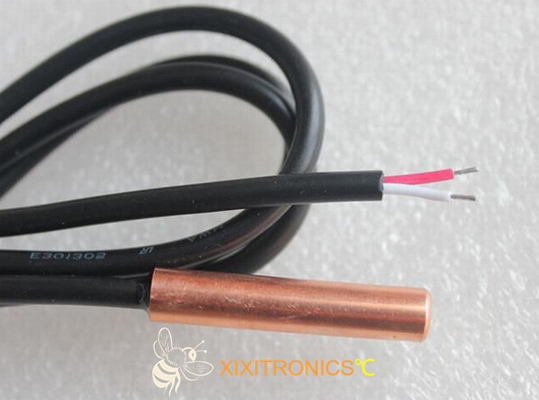

Copper Probe Air Conditioner Temperature Sensor 20K 3950 MFT Series
Features:
■ A glass-encapsulated thermistor / epoxy-cotated thermistor is sealed in a ABS,Nylon,Cu/ni ,SUS housing.
■ Proven long term Stability and Reliability
■ Insulation voltage is 1800VAC,2sec.
■ Insulation resistance is 500VDC ≥100MΩ
■ Various protection tube are available ( Plastic housings have excellent performance of being cold and heat resistant.)
■ PVC or TPE sleeved cable is recommended
■ PH,XH,SM,5264 or other connectors is recommended
Applications:
■ Air-conditioners (room and outdoor air) / Automobile air conditioners
■ Refrigerators , Freezers . Recommendation as follows:
R25℃=10KΩ±1% B25/85℃=3435K±1% or
R0℃=16.33KΩ±2% B25/100℃=3980K±1.5% or
R25℃=100KΩ±1% B25/85℃=4066K±1%
■ Dehumidifiers and dishwashers (solid inside/surface)
■ Washer dryers, Radiators and showcase.
Dimensions:
Product specification:
|
Specification
|
R25℃
(KΩ) |
B25/50℃
(K) |
Disspation Constant
(mW/℃) |
Time Constant
(S) |
Operation Temperature
(℃) |
| XXMFT-10-102□ | 1 | 3200 |
2.5 - 5.5 typical in still air at 25℃
|
7 - 20
typical in stirred water |
-30～80
-30～105
-30～125
-30～180
|
|
XXMFT-338/350-202□
|
2
|
3380/3500 | |||
| XXMFT-327/338-502□ | 5 | 3270/3380/3470 | |||
|
XXMFT-327/338-103□
|
10
|
3270/3380 | |||
| XXMFT-347/395-103□ | 10 | 3470/3950 | |||
|
XXMFT-395-203□
|
20
|
3950 | |||
| XXMFT-395/399-473□ | 47 | 3950/3990 | |||
|
XXMFT-395/399/400-503□
|
50
|
3950/3990/4000 | |||
| XXMFT-395/405/420-104□ | 100 | 3950/4050/4200 | |||
| XXMFT-420/425-204□ | 200 | 4200/4250 | |||
|
XXMFT-425/428-474□
|
470
|
4250/4280 | |||
| XXMFT-440-504□ | 500 | 4400 | |||
| XXMFT-445/453-145□ | 1400 | 4450/4530 |
