Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series

Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series
Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series

Large Image :  Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFT-F1701 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 10pcs / bundle
Delivery Time: 5-12 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Water Dispenser Flanged Temperature Sensors

,

Flanged Temperature Sensors 100K

,

Flanged 100k ohm ntc thermistor

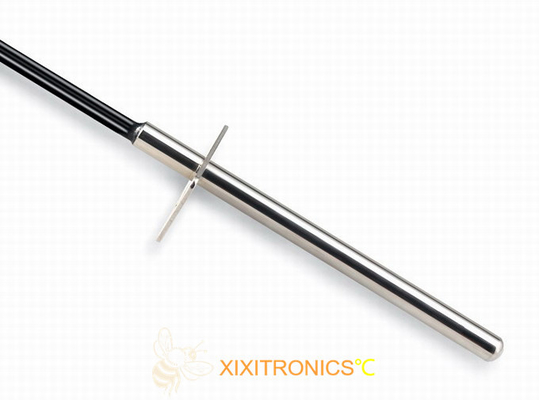

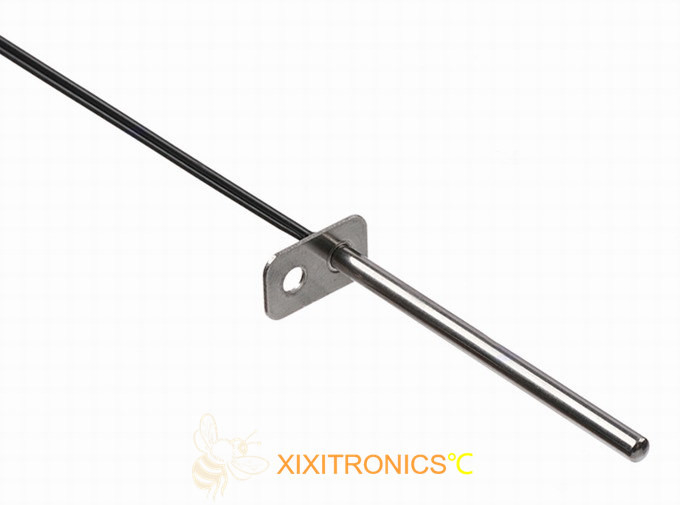

100K Temperature Sensor for Water Dispenser, Electric Oven, Microwave Oven, Air Fryer MFT-F17 Series



Brief Introduction:

MFT-F17 series uses food-grade SS304 tube for food safety and uses epoxy resin with excellent performance of moisture-resistant for an encapsulation.

The products can be designed ccording to your every single requirement, which included dimensions, appearance, cable and characteristics and so on.

The custom-built products can help user have a better installation and use, especially the one with flange. The series have high stability, reliability and sensitivity.



Features:

1. Easy to install, and the products can be customized according to your every single requirement
2. High precision of Resistance value and B value, good consistency and stability
3. Moisture and high temperature resistance, wide range of applications
4. Excellent performance of voltage resistance
5. Products are in accordance with the RoHS, REACH certification
6. The SS304 material which connected the food directly can meet the FDA and LFGB certification


Applications:

Water dispenser, drinking fountain

■ Electric oven, Air Fryer , Electric Baked Plate
Heaters and Air Cleaners (inside ambient)

Microwave oven chambers (air & vapor)
Vacuum cleaners (solid)



Characteristics:

1. Recommendation as follows:
    R25℃=10KΩ±1% B25/50℃=3950K±1% or
    R25℃=50KΩ±1% B25/50℃=3950K±1%
2. Working temperature range:
    -30℃~+105℃ or

    -30℃~+150℃
3. Thermal time constant: MAX.10sec.( typical in stirred water )

4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized



Dimensions:



Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series 0     Water Dispenser 100K Flanged Temperature Sensors Air Fryer MFT-F17 Series 1



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFT-10-102□ 1 3200




2.1 - 2.5 typical in still air at 25℃




60
typical in still air




-30~105
-30~150
XXMFT-338/350-202□
2
3380/3500
XXMFT-327/338-502□ 5 3270/3380/3470
XXMFT-327/338-103□
10
3270/3380
XXMFT-347/395-103□ 10 3470/3950
XXMFT-395-203□
20
3950
XXMFT-395/399-473□ 47 3950/3990
XXMFT-395/399/400-503□
50
3950/3990/4000
XXMFT-395/405/420-104□ 100 3950/4050/4200
XXMFT-420/425-204□ 200 4200/4250
XXMFT-425/428-474□
470
4250/4280
XXMFT-440-504□ 500 4400
XXMFT-445/453-145□ 1400 4450/4530
