Product Details:
|
| R 25℃: | 2KΩ-2.3 MΩ | B Value: | 3200-4200K |
|---|---|---|---|
| R Tolerance: | 0.5% , 1% , 2% , 3% , 5% | B Tolerance: | 0.5% , 1% , 2% , 3% |
| Highlight: | Oven Flanged Temperature Sensors,Air Fryer Flanged Temperature Sensors,Air Fryer Temperature Sensors |
||

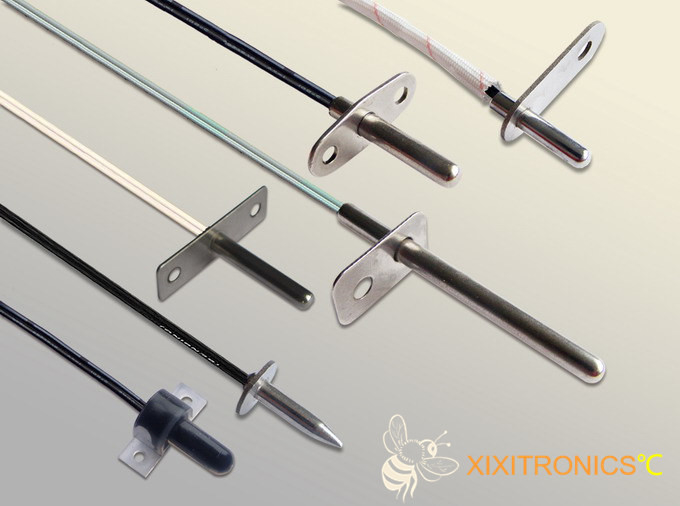

Temperature Sensor for Electric Oven, Microwave Oven, Air Fryer, Electric Baked Plate MFT-F Series
Features:
■ Glass-encapsulated thermistor elements which withstand high voltage are available
■ Outstanding accuracy and response solution for oven temperature control
■ Max. temperature up to 300℃ (from the tip of protection tube to the flange)
Applications:
■ Microwave oven chambers (air & vapor)
■ Heaters and air cleaners (inside ambient)
■ Vacuum cleaners (solid)
Dimensions:
Product specification:
|
Specification
|
R25℃
(KΩ) |
B25/50℃
(K) |
Disspation Constant
(mW/℃) |
Time Constant
(S) |
Operation Temperature
(℃) |
| XXMFT-10-102□ | 1 | 3200 |
2.1 - 2.5 typical in still air at 25℃
|
60 - 100
typical in still air |
-20～105
-20～200
-20～300
|
|
XXMFT-338/350-202□
|
2
|
3380/3500 | |||
| XXMFT-327/338-502□ | 5 | 3270/3380/3470 | |||
|
XXMFT-327/338-103□
|
10
|
3270/3380 | |||
| XXMFT-347/395-103□ | 10 | 3470/3950 | |||
|
XXMFT-395-203□
|
20
|
3950 | |||
| XXMFT-395/399-473□ | 47 | 3950/3990 | |||
|
XXMFT-395/399/400-503□
|
50
|
3950/3990/4000 | |||
| XXMFT-395/405/420-104□ | 100 | 3950/4050/4200 | |||
| XXMFT-420/425-204□ | 200 | 4200/4250 | |||
|
XXMFT-425/428-474□
|
470
|
4250/4280 | |||
| XXMFT-440-504□ | 500 | 4400 | |||
| XXMFT-445/453-145□ | 1400 | 4450/4530 |
