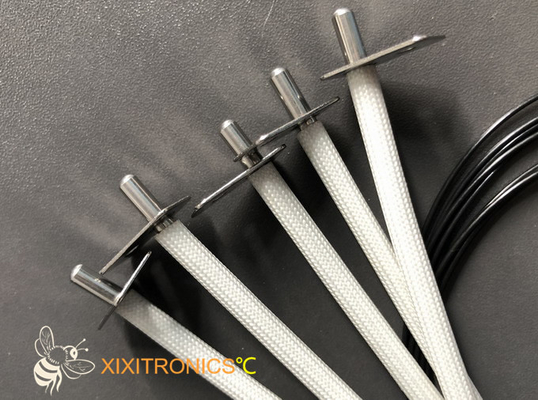

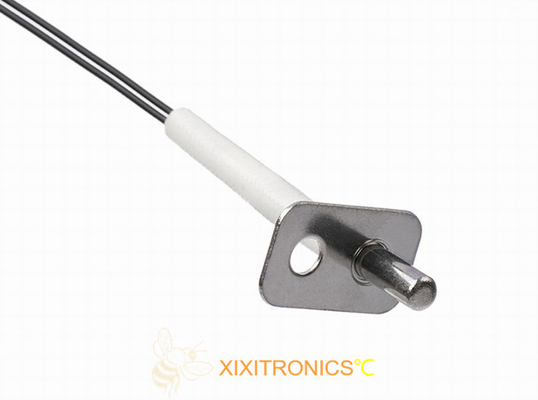

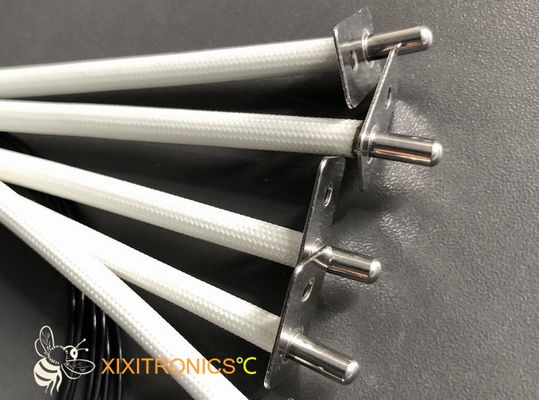

Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series

Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series
Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series

Large Image :  Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFT-F Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle
Delivery Time: 5 -12 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Microwave Oven Flanged Temperature Sensors

,

Flanged Temperature Sensors 98.63K

,

Flanged 100K Temperature Sensor

98.63K , 100K Temperature Sensor for Electric Oven, Microwave Oven, Air Fryer, Electric Baked Plate MFT-F Series



Brief Introduction:

MFT-F series uses high thermalconductive paste injected into the tube to speed up the heat conduction,riveting fixing process for a better fixation and food-level SS304 tube for a better food safety.

It can be designed and produced according to every single requirement such as size, outline, characteristics and so on. The customization can help customer have an easy installation, especially the products wiht flange.



Features:
Glass-encapsulated thermistor elements which withstand high voltage are available

■ Outstanding accuracy and response solution for oven temperature control
■ Max. temperature up to 300℃ (from the tip of protection tube to the flange)

 Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

■ Products are in accordance with the RoHS, REACH certification.


Applications:

Microwave oven chambers (air & vapor)

■ Electric oven, Air Fryer
Heaters and Air Cleaners (inside ambient)

Water dispenser
Vacuum cleaners (solid)



Characteristics:

1. Recommendation as follows:
    R25℃=100KΩ±1% B25/50℃=3950K±1% or
    R25℃=98.63KΩ±1% B25/85℃=4066K±1% or
    R200℃=1KΩ±3% B100/200℃=4300K±2%
2. Working temperature range: -30℃~+200℃ or -30℃~+250℃ or -30℃~+300℃

3. Thermal time constant: MAX.7sec.( typical in stirred water )
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized



Dimensions:



Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series 0     Microwave Oven Flanged Temperature Sensors 98.63K , 100K Temperature Sensor MFT-F Series 1



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFT-10-102□ 1 3200




2.1 - 2.5 typical in still air at 25℃




60 - 100
typical in still air




-30~105
-30~200
-30~250
-30~300
XXMFT-338/350-202□
2
3380/3500
XXMFT-327/338-502□ 5 3270/3380/3470
XXMFT-327/338-103□
10
3270/3380
XXMFT-347/395-103□ 10 3470/3950
XXMFT-395-203□
20
3950
XXMFT-395/399-473□ 47 3950/3990
XXMFT-395/399/400-503□
50
3950/3990/4000
XXMFT-395/405/420-104□ 100 3950/4050/4200
XXMFT-420/425-204□ 200 4200/4250
XXMFT-425/428-474□
470
4250/4280
XXMFT-440-504□ 500 4400
XXMFT-445/453-145□ 1400 4450/4530
