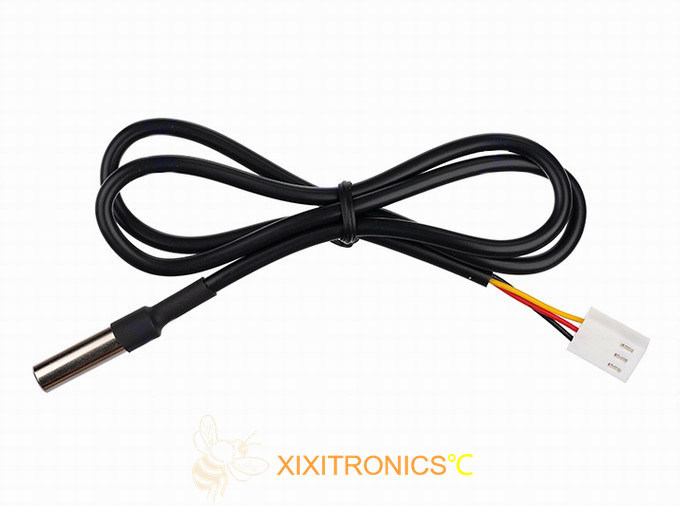

DS18B20 Straight Probe Temperature Sensor For Greenhouse Communication Base Station Vehicle

DS18B20 Straight Probe Temperature Sensor For Greenhouse Communication Base Station Vehicle
DS18B20 Straight Probe Temperature Sensor For Greenhouse Communication Base Station Vehicle

Large Image :  DS18B20 Straight Probe Temperature Sensor For Greenhouse Communication Base Station Vehicle

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFT Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 50pcs / bundle
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

DS18B20 Straight Probe Temperature Sensor For Greenhouse Communication Base Station Vehicle

Description
Chip: DS18B20 Original Probe: 6*25mm SUS , Size Can Be Customized
Temperature Range: -55℃~+105℃ Accuracy: -10℃~+80℃ , ±0.5℃
Wire: PVC Cable , Can Be Customized Connector: XH, SM, 5264, 2510, 5556 Connector Recommended
High Light:

DS18B20 Probe Temperature Sensor

,

Greenhouse Probe Temperature Sensor

,

Greenhouse 18b20 temperature sensor

DS18B20 Temperature Sensor for Greenhouse, Communication Base Station, Vehicle MFT-4401 Series



Brief Introduction:

The DS18B20 temperature sensor takes DS18B20 chip as a core of temperature measurement, working temperature range is -55℃~+105℃. The deviation will be ±0.5℃ at the temperature range of -10℃~+80℃.

Housing adopts SS304 tube, three-core sheathed cable as conductor and moisture-resistant epoxy resin for capsulation.

DS18B20 output signal is quite stable, there won't be a attenuation, no matter how far the transmission distance is. It is suitable for detection with long distance and multipoint temperature measuring. The measurement results are serially transmitted in 9-12 digits, have stable, long-service-life, strong anti-interference performance.



Features:

1. Food-grade SS304 housing, size and appearance can be customized according to the installation structure

2. Digital signal output, high precision, excellent moisture resistance, stable performance
3. Accuracy: the deviation is 土0.5°C at the range of -10°C ~+80℃
4. Operating temperature range -55°℃ ~+105℃
5. lt is suitable for long-distance, multi-point temperature detection

6. PVC wire or sleeved cable is recommended
7. XH, SM, 5264, 2510 or 5556 connector is recommended

8. Product is compatible with REACH and RoHS certifications

9. SS304 material is compatible with FDA and LFGB certifications.



Applications:
Greenhouses, communication base stations

 Wine cellar, Greenhouse, Air conditioner
Temperature controller of Incubator

 Instrumentation, Refrigerated Truck

 Flue-cured tobacco, Granary,
GMP temperature detection system for Pharmaceutical factory



Dimensions:



DS18B20 Straight Probe Temperature Sensor For Greenhouse Communication Base Station Vehicle 0     DS18B20 Straight Probe Temperature Sensor For Greenhouse Communication Base Station Vehicle 1



DS18B20 Straight Probe Temperature Sensor For Greenhouse Communication Base Station Vehicle 2     DS18B20 Straight Probe Temperature Sensor For Greenhouse Communication Base Station Vehicle 3




Working Show :
