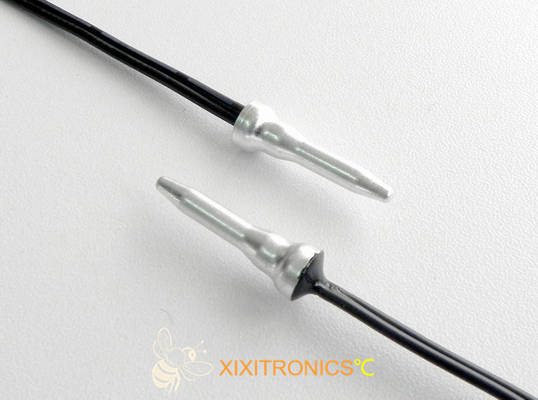

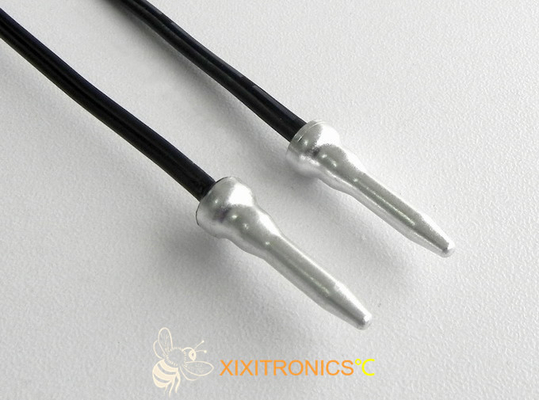

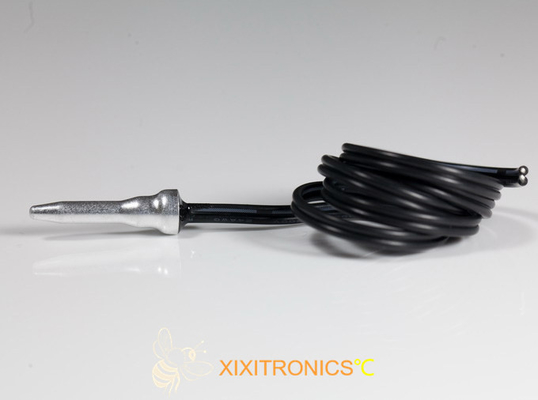

Air Conditioner AC Evaporator Automotive Temperature Sensor With Standard Aluminum Casing

Air Conditioner AC Evaporator Automotive Temperature Sensor With Standard Aluminum Casing
Air Conditioner AC Evaporator Automotive Temperature Sensor With Standard Aluminum Casing Air Conditioner AC Evaporator Automotive Temperature Sensor With Standard Aluminum Casing Air Conditioner AC Evaporator Automotive Temperature Sensor With Standard Aluminum Casing

Large Image :  Air Conditioner AC Evaporator Automotive Temperature Sensor With Standard Aluminum Casing

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFB Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 50pcs / bundle
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year

Air Conditioner AC Evaporator Automotive Temperature Sensor With Standard Aluminum Casing

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

MFB Automotive Temperature Sensor

,

Aluminum Automotive Temperature Sensor

Air Conditioner Evaporator Sensor with Standard Aluminum Casing MFB Series



Features:
A radial glass-encapsulated thermistor element is sealed with epoxy resin
Proven long term Stability , Reliability, and high Durability
High Sensitivity and the Fastest thermal response
PVC cable,XLPE insulated wire



Applications:

Mainly used for Car Air Conditioning, Evaporators
Standard temperature sensor for home appliances: air conditioner, referigerator, freezer, air heater, dishwasher, etc.
Water heaters, heat pump water heaters and coffee makers (water)
Bidets (instant inlet water)



Characteristics:

1. Recommendation as follows:
    R0℃=6.65KΩ±1% B0/25℃=3915K±1% or
    R0℃=4.852KΩ±1% B25/50℃=3950K±1%
2. Working temperature range: -40℃~+105℃
3. Thermal time constant: MAX.10sec.

4. Insulation voltage: 1500VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFB-10-102□ 1 3200




1.5 - 4.8 typical in stirred water




0.5 - 2
typical in stirred water





-40~105

XXMFB-338/350-202□
2
3380/3500
XXMFB-327/338-502□ 5 3270/3380/3470
XXMFB-327/338-103□
10
3270/3380
XXMFB-347/395-103□ 10 3470/3950
XXMFB-395-203□
20
3950
XXMFB-395/399-473□ 47 3950/3990
XXMFB-395/399/400-503□
50
3950/3990/4000
XXMFB-395/405/420-104□ 100 3950/4050/4200
XXMFB-420/425-204□ 200 4200/4250
XXMFB-425/428-474□
470
4250/4280
XXMFB-440-504□ 500 4400
XXMFB-445/453-145□ 1400 4450/4530
