Waterproof and Moistureproof Copper Housing Temperature Sensor For Air - Conditioner MFT-05 Series

Waterproof and Moistureproof Copper Housing Temperature Sensor for for Air-conditioner MFT-05 Series

Brief Introduction:

MFT-05 series choose NTC thermistor with high accuracy and high reliability, several times of coating and filling, which enhance product reliability and insulation performance. The product has excellent performance of waterproof and moisture-proof.
This temperature sensor encapsulated with copper housing can work for a long time in air conditioning compressor, pipe, exhaust such high humidity environment.

Features:

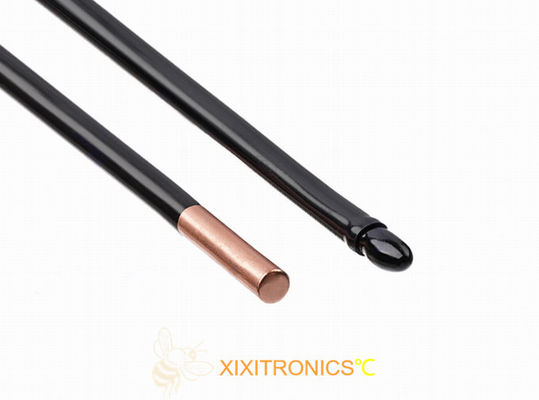

■ A glass-encapsulated thermistor is sealed Copper housing
■ High precision for Resistance value and B value

■ Proven long term Stability and Reliability, and Good consistency of product

■ Good performance of moisture and low temperature resistance and voltage resistance.

■ Products are in accordance with the RoHS, REACH certification

Applications:

■ Air-conditioners (room and outdoor air) / Automobile air conditioners

■ Refrigerator, Freezer, Heating Floor
■ Dehumidifiers and dishwashers (solid inside/surface)
■ Washer dryers, Radiators and showcase.

■ Detection of ambient temperature and water temperature

Characteristics:

1. Recommendation as follows:
    R25℃=10KΩ±1% B25/85℃=3435K±1% or
    R25℃=5KΩ±1% B25/50℃=3470K±1% or
    R25℃=50KΩ±1% B25/50℃=3950K±1%
2. Working temperature range: -30℃～+105℃

3. Thermal time constant: MAX.15sec.
4. PVC or XLPE cable is recommended
5. Connectors are recommended for PH,XH,SM,5264 and so on
6. Above characteristics all can be customized

Dimensions:

Product specification:
