Food Safety Grade SUS304 Housing Temperature Sensor For Milk Foam Machine

Certification
China Hefei XIXI Electronics Co., ltd certification
China Hefei XIXI Electronics Co., ltd certification
I'm Online Chat Now

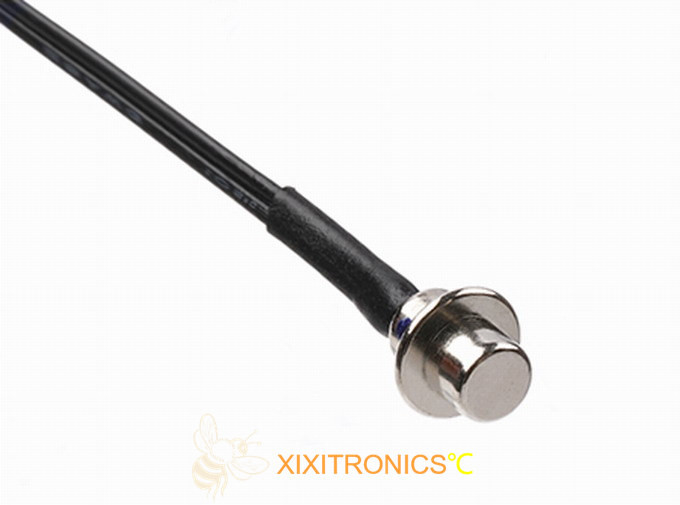

Food Safety Grade SUS304 Housing Temperature Sensor For Milk Foam Machine

Food Safety Grade SUS304 Housing Temperature Sensor For Milk Foam Machine
Food Safety Grade SUS304 Housing Temperature Sensor For Milk Foam Machine

Large Image :  Food Safety Grade SUS304 Housing Temperature Sensor For Milk Foam Machine

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFP-1401 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 20pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

Food Safety Grade SUS304 Housing Temperature Sensor For Milk Foam Machine

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Food housing temperature sensor

,

SUS304 housing temperature sensor

,

housing temperature sensor SUS304

Food Safety Grade SUS304 Housing Temperature Sensor for Milk Foam Machine, Milk Warmer MFP-14 Series



Brief Introduction:

MFP-14 series adopts food-safety SS304 housing and uses epoxy resin for encapsulation which has excellent performance of moisture-resistance, cooperated with mature manufacture technology, make products have high accuracy, sensitivity, stability and reliability.

It can be customized according to customer requirements,such as dimensions, materials, appearance, characteristics and so on, it will help customers install easily.

This series products can comply with environmental requirements and export requirements.



Features:
Easy installation, and the products can be customized according to your every single requirement.

A glass thermistor is sealed with epoxy resin. Good resistance of moisture and high temperature.
Proven long term Stability and Reliability ,wide range of applications

■ High sensitivity of measuring temperature
Excellent performance of voltage resistance.

Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

Products are in accordance with the RoHS, REACH certification.


Applications:

■ Milk Foam Machine, Milk Warmer

Coffee Machine, Electric oven
Electric Baked Plate

Hot water boiler tanks, Water Heater
Automobile engines (solid), engine oil (oil), radiators (water)



Characteristics:

1. Recommendation as follows:
    R25℃=10KΩ±1% B25/85℃=3435K±1% or
    R25℃=50KΩ±1% B25/50℃=3950K±1% or
    R25℃=100KΩ±1% B25/50℃=3950K±1%
2. Working temperature range: -30℃~+105℃

3. Thermal time constant: MAX.10sec.
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. PVC or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized



Dimensions:



Food Safety Grade SUS304 Housing Temperature Sensor For Milk Foam Machine 0     Food Safety Grade SUS304 Housing Temperature Sensor For Milk Foam Machine 1



 Food Safety Grade SUS304 Housing Temperature Sensor For Milk Foam Machine 2



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFP-S-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




Max10 typical in stirred water





-30~125

XXMFP-S-338/350-202□
2
3380/3500
XXMFP-S-327/338-502□ 5 3270/3380/3470
XXMFP-S-327/338-103□
10
3270/3380
XXMFP-S-347/395-103□ 10 3470/3950
XXMFP-S-395-203□
20
3950
XXMFP-S-395/399-473□ 47 3950/3990
XXMFP-S-395/399/400-503□
50
3950/3990/4000
XXMFP-S-395/405/420-104□ 100 3950/4050/4200
XXMFP-S-420/425-204□ 200 4200/4250
XXMFP-S-425/428-474□
470
4250/4280
XXMFP-S-440-504□ 500 4400
XXMFP-S-445/453-145□ 1400 4450/4530
