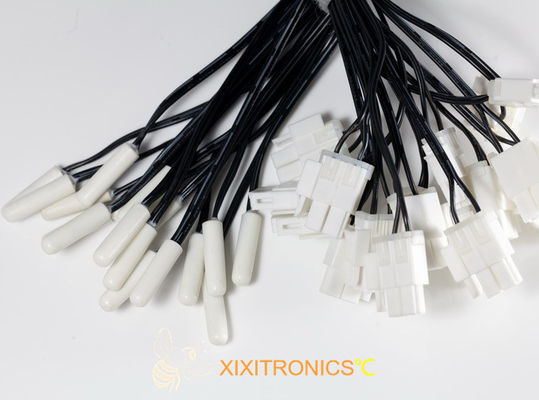

5K 3470 MFT Series ABS Housing Home Appliance Sensors For Refrigerator Ice Tank Freezer

5K 3470 MFT Series ABS Housing Home Appliance Sensors For Refrigerator Ice Tank Freezer
5K 3470 MFT Series ABS Housing Home Appliance Sensors For Refrigerator Ice Tank Freezer 5K 3470 MFT Series ABS Housing Home Appliance Sensors For Refrigerator Ice Tank Freezer 5K 3470 MFT Series ABS Housing Home Appliance Sensors For Refrigerator Ice Tank Freezer

Large Image :  5K 3470 MFT Series ABS Housing Home Appliance Sensors For Refrigerator Ice Tank Freezer

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFT Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 50pcs / bundle , 100pcs / bundle
Delivery Time: 5 -10 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year

5K 3470 MFT Series ABS Housing Home Appliance Sensors For Refrigerator Ice Tank Freezer

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Home Appliance Sensors 3470

,

Home Appliance Sensors 5K

,

freezer temperature sensors 3470

ABS housing, Nylon housing Refrigerator, Freezer, Heating Floor used Temperature sensors 5K 3470 MFT Series



Features:
A glass-encapsulated thermistor / epoxy-cotated thermistor is sealed in a ABS housing, Nylon housing.
Proven long term Stability and Reliability

Insulation voltage is 1800VAC,2sec.

Insulation resistance is 500VDC ≥100MΩ
Various protection tube are available ( Plastic housings have excellent performance of being cold and heat resistant.)

■ PVC or TPE sleeved cable is recommended

■ PH,XH,SM,5264 or other connectors is recommended



Applications:
  Refrigerators , Freezers . Recommendation as follows:
    R25℃=10KΩ±1% B25/85℃=3435K±1% or
    R0℃=16.33KΩ±2% B25/100℃=3980K±1.5% or
    R25℃=100KΩ±1% B25/85℃=4066K±1%

■  Air-conditioners (room and outdoor air) / Automobile air conditioners
  Dehumidifiers and dishwashers (solid inside/surface)
■  Washer dryers,
Radiators and showcase.



Dimensions:



Straight Probe Temperature Sensors MFT Series 100K 3950 0 Straight Probe Temperature Sensors MFT Series 100K 3950 1



Straight Probe Temperature Sensors MFT Series 100K 3950 2 Straight Probe Temperature Sensors MFT Series 100K 3950 3



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFT-10-102□ 1 3200




2.5 - 5.5 typical in still air at 25℃




7 - 20
typical in stirred water




-30~80
-30~105
-30~125
-30~180
XXMFT-338/350-202□
2
3380/3500
XXMFT-327/338-502□ 5 3270/3380/3470
XXMFT-327/338-103□
10
3270/3380
XXMFT-347/395-103□ 10 3470/3950
XXMFT-395-203□
20
3950
XXMFT-395/399-473□ 47 3950/3990
XXMFT-395/399/400-503□
50
3950/3990/4000
XXMFT-395/405/420-104□ 100 3950/4050/4200
XXMFT-420/425-204□ 200 4200/4250
XXMFT-425/428-474□
470
4250/4280
XXMFT-440-504□ 500 4400
XXMFT-445/453-145□ 1400 4450/4530
