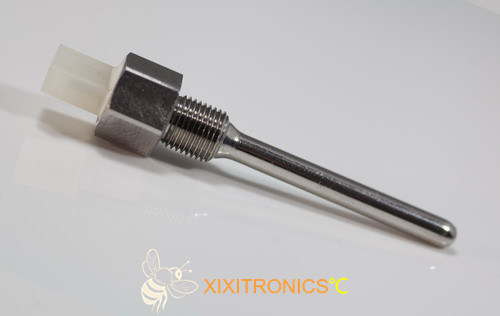

Water Heater Boiler Temperature Probe Sensor PT1000 Element MFP-S Series

Water Heater Boiler Temperature Probe Sensor  PT1000 Element  MFP-S Series
Water Heater Boiler Temperature Probe Sensor  PT1000 Element  MFP-S Series Water Heater Boiler Temperature Probe Sensor  PT1000 Element  MFP-S Series Water Heater Boiler Temperature Probe Sensor  PT1000 Element  MFP-S Series

Large Image :  Water Heater Boiler Temperature Probe Sensor PT1000 Element MFP-S Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFP-S Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 10pcs / Ziplock Bag
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 2 Million Pieces Per Year

Water Heater Boiler Temperature Probe Sensor PT1000 Element MFP-S Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

boiler temperature probe

,

boiler temperature probe PT1000

,

boiler temperature sensor PT1000

Water Heater Boiler Temperature Probe Sensor PT1000 Element MFP-S Series



Features:
A glass thermistor / PT1000 element is sealed with epoxy resin
Proven long term Stability and Reliability
To install and fixed by screw thread



Applications:
Hot water boiler tanks , Coffee Machine

Automobile engines (solid), engine oil (oil), radiators (water)
Soybean milk machine
Power system



Dimensions:



Boilers / Coffee Machine Temperature sensors  MFP-S Series 0 Boilers / Coffee Machine Temperature sensors  MFP-S Series 1



Boilers / Coffee Machine Temperature sensors  MFP-S Series 2



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFP-S-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




10 - 20typicalin stirred water





-30~125
XXMFP-S-338/350-202□
2
3380/3500
XXMFP-S-327/338-502□ 5 3270/3380/3470
XXMFP-S-327/338-103□
10
3270/3380
XXMFP-S-347/395-103□ 10 3470/3950
XXMFP-S-395-203□
20
3950
XXMFP-S-395/399-473□ 47 3950/3990
XXMFP-S-395/399/400-503□
50
3950/3990/4000
XXMFP-S-395/405/420-104□ 100 3950/4050/4200
XXMFP-S-420/425-204□ 200 4200/4250
XXMFP-S-425/428-474□
470
4250/4280
XXMFP-S-440-504□ 500 4400
XXMFP-S-445/453-145□ 1400 4450/4530
