Product Details:
|
| R 0℃: | 100Ω, 500Ω, 1000Ω, | Accuracy: | 1/3 Class DIN-C, Class A, Class B |
|---|---|---|---|
| Temperature Coefficient: | TCR=3850ppm/K | Product Insulation Voltage: | 1800VAC, 2sec |
| Highlight: | PT1000 RTD Temperature Sensors,Platinum RTD Temperature Sensors PT1000,pt1000 rtd Sensors |
||
Platinum RTD Temperature Sensor PT1000 Detector for Calorimeter, Heat Meter
Brief Introduction:
The calorimeter (heat meter) temperature sensor produced by XIXITRONICS, the deviation range of each pair temperature sensor meets the requirements of Chinese standard CJ 128-2007 and European standard EN 1434, and the accuracy of each pair of temperature sensor probes with pairing can meet the deviation of ±0.1℃.

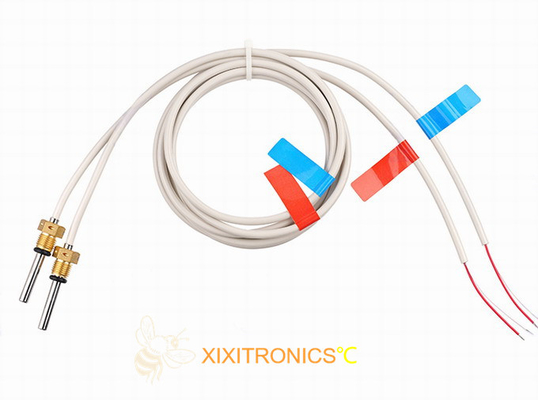

The two ends of each pair of temperature probes are respectively pasted with red and blue labels to avoid reverse installation.
The red one is water inlet end, and the blue one is water outlet end.
Features:
1. PT1000 chip is recommended
2. Accuracy: B class, 2B class
3. Working temperature range: 0℃～+105℃
4. Pressure resistance PN=16bar (flow rate 2m/s)
5. Characteristics curve: TCR=3850ppm/K
6. Long-term stability: the change rate is less than 0.04% when working 1000 hours at maximum temperature
7. PVC sheath cable with OD 4.2mm is recommended
8. Communication mode: two-wire system, three-wire system
10. Product is compatible with RoHS and REACH certifications.
11. SS304 tube is compatible with FDA and LFGB certifications.
Applications:
Calorimeter, heat meter
