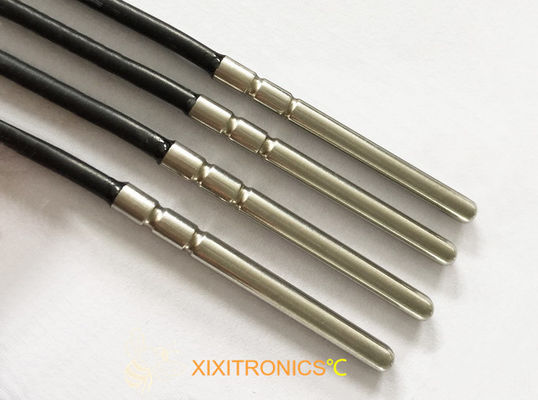

Silicone Cable PT1000 Temperature Platinum Rtd Sensor PT-RTD Series

Silicone Cable PT1000 Temperature Platinum Rtd Sensor PT-RTD Series
Silicone Cable PT1000 Temperature Platinum Rtd Sensor PT-RTD Series Silicone Cable PT1000 Temperature Platinum Rtd Sensor PT-RTD Series Silicone Cable PT1000 Temperature Platinum Rtd Sensor PT-RTD Series

Large Image :  Silicone Cable PT1000 Temperature Platinum Rtd Sensor PT-RTD Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: PT-RTD Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle, 50pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 1 Million Pieces Per Year

Silicone Cable PT1000 Temperature Platinum Rtd Sensor PT-RTD Series

Description
R 0℃: 100Ω, 500Ω, 1000Ω, Accuracy: 1/3 Class DIN-C, Class A, Class B
Temperature Coefficient: TCR=3850ppm/K Insulation Voltage: 1800VAC, 2sec
Insulation Resistance: 500VDC ≥100MΩ Wire: Φ4.0mm, Silicone Cable 200℃
Communication Mode: 2 Wire、3 Wire、4 Wire System Probe: Sus 6*45mm
High Light:

platinum rtd sensor PT1000

,

Silicone platinum rtd sensor

,

platinum temperature sensor PT1000

Silicone Cable PT1000 Temperature Sensor PT-RTD Series



Features:
A platinum resistor is built into the various housing
Proven long term Stability and Reliability
Interchangeability and High Sensitivity with High precision

 Product is compatible with RoHS and REACH certifications
 SS304 tube is compatible with FDA and LFGB certifications


Applications:
White goods, HVAC, and Food sectors
Automotive and Medical
Marine, Energy management and Industrial equipment


Dimensions:

Silicone Cable PT1000 Temperature Platinum Rtd Sensor PT-RTD Series 0     Silicone Cable PT1000 Temperature Platinum Rtd Sensor PT-RTD Series 1

Product specification:



Specification

(according to IEC 751)

R 0℃
(Ω)

Tolerance

Long-term stability

Temperature coefficient

operation temperature range (℃)
XXPT-RTD -100-B
100
DIN EN 60751, class B


max. R0-drift 0.04% after 1000 h at 500°C


TCR = 3850 ppm/K
-70~500
XXPT-RTD -100-A
100
DIN EN 60751, class A -50~300
XXPT-RTD -100-C
100
DIN EN 60751, class 1/3 DIN 0~150
XXPT-RTD -500-B
500
DIN EN 60751, class B -70~500
XXPT-RTD -1000-B
1000
DIN EN 60751, class B -70~500
XXPT-RTD -1000-A
1000
DIN EN 60751, class A -50~300
XXPT-RTD -1000-C 1000 DIN EN 60751, class 1/3 DIN 0~150
