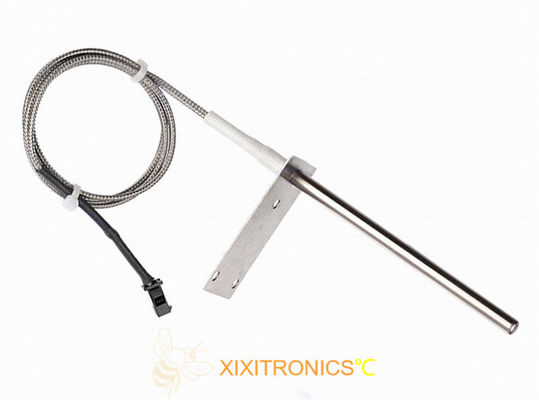

4 Wire PT100 Platinum Resistor Temperature Sensor For BBQ Oven

4 Wire PT100 Platinum Resistor Temperature Sensor For BBQ Oven
4 Wire PT100 Platinum Resistor Temperature Sensor For BBQ Oven

Large Image :  4 Wire PT100 Platinum Resistor Temperature Sensor For BBQ Oven

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: TR53 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 1 Million Pieces Per Year

4 Wire PT100 Platinum Resistor Temperature Sensor For BBQ Oven

Description
R 0℃: 100Ω, 500Ω, 1000Ω, Accuracy: 1/3 Class DIN-C, Class A, Class B
Temperature Coefficient: TCR=3850ppm/K Product Insulation Voltage: 1500VAC, 2sec
Highlight:

Flanged pt100 platinum resistor temperature sensor

,

pt100 platinum resistor temperature sensor

,

pt1000 rtd Temperature Sensor

Flanged High Temperature PT100 PT1000 Probe for Grill, Electric Oven and Electric Plate PT-RTD53 Series



Brief Introduction:

TR53 series, it can be customized with different working requirements, uses 380℃ PTFE cable or 450℃ glass-fiber mica cable.

Uses one-piece insulated ceramic tube to prevent from short circuit, insurance of voltage-resistance and insulation performance.

Adopts food-grade SS304 tube with RTD sensing chip in, to ensure product work normally at 500℃.



Features:

1. PT100, PT500, PT1000 chip is recommended
2. Accuracy: class A, class B
3. Working temperature range: -60℃~+300℃, -60℃~+380℃ or -60℃~+450℃
4. Insulation voltage:1500VAC, 2sec
5. Insulation resistance: 500VDC ≥100MΩ
6. Characteristics curve: TCR=3850ppm/K
7. Long-term stability: the change rate is less than 0.04% when working 1000 hours at maximum temperature
8. 380℃ SS304 braided cable or glass-fiber mica cable is recommended
9. Communication mode: two-wire system, three-wire system, four-wire system
10. Product is compatible with RoHS and REACH certifications.
11. SS304 tube is compatible with FDA and LFGB certifications.



Applications:

Industrial temperature control, temperature testing box, Barbecue Oven
