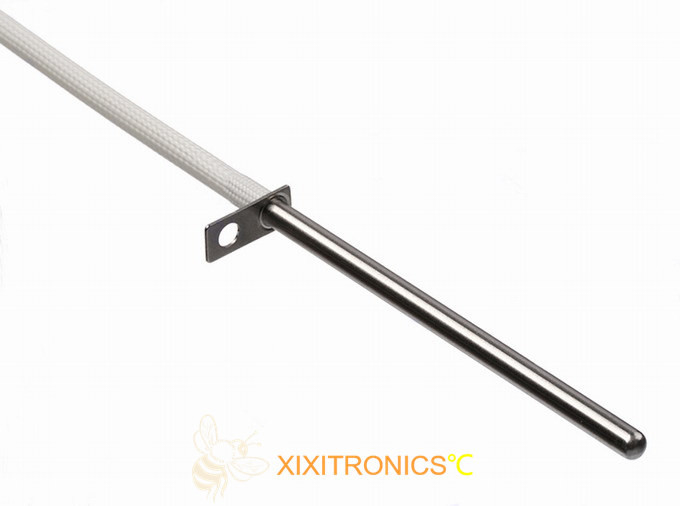

100K Flanged Temperature Sensors For BBQ Electric Oven , Electric Baked Plate

100K Temperature Sensor for BBQ Electric Oven, Electric Baked Plate, Air Fryer MFT-F Series

Brief Introduction:

MFT-F series uses high thermalconductive paste injected into the tube to speed up the heat conduction,riveting fixing process for a better fixation and food-level SS304 tube for a better food safety.

It can be designed and produced according to every single requirement such as size, outline, characteristics and so on. The customization can help customer have an easy installation, especially the products wiht flange.

Features:
■ Glass-encapsulated thermistor elements which withstand high voltage are available

■ Outstanding accuracy and response solution for oven temperature control
■ Max. temperature up to 300℃ (from the tip of protection tube to the flange)

■ Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

■ Products are in accordance with the RoHS, REACH certification.

Applications:

■ Microwave oven chambers (air & vapor)

■ Electric oven, Air Fryer , Electric Baked Plate
■ Heaters and Air Cleaners (inside ambient)

■ Water dispenser
■ Vacuum cleaners (solid)

Characteristics:

1. Recommendation as follows:
    R25℃=100KΩ±1% B25/50℃=3950K±1% or
    R25℃=98.63KΩ±1% B25/85℃=4066K±1% or
    R200℃=1KΩ±3% B100/200℃=4300K±2%
2. Working temperature range: -30℃～+200℃ or -30℃～+250℃ or -30℃～+300℃

3. Thermal time constant: MAX.7sec.( typical in stirred water )
4. Insulation voltage: 1800VAC,2sec.
5. Insulation resistance: 500VDC ≥100MΩ
6. Teflon cable or XLPE cable is recommended
7. Connectors are recommended for PH, XH, SM, 5264 and so on
8. Above characteristics all can be customized

Dimensions:

Product specification:
