Product Details:
|
| R 0℃: | 100Ω, 500Ω, 1000Ω, | Accuracy: | 1/3 Class DIN-C, Class A, Class B |
|---|---|---|---|
| Temperature Coefficient: | TCR=3850ppm/K | Insulation Voltage: | 1800VAC, 2sec |
| Insulation Resistance: | 500VDC ≥100MΩ | Communication Mode: | 2 Wire, 3 Wire , 4 Wire System |

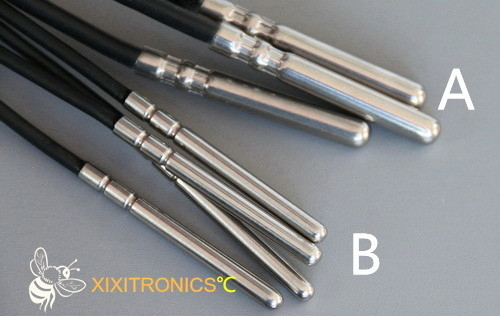

| Probe:: | Sus 6*45mm , Sus 4*45mm | ||
| High Light: | Platinum RTD Temperature Sensors 4Wire,Platinum RTD Temperature Sensors 3Wire,pt100 temperature sensor 2 wire |
||
Platinum Resistance Temperature Detectors PT100, PT1000 Series
Features:
■ A platinum resistor is built into the various housing
■ Proven long term Stability and Reliability
■ Interchangeability and High Sensitivity with High precision
■ Product is compatible with RoHS and REACH certifications
■ SS304 tube is compatible with FDA and LFGB certifications
Applications:
■ White goods, HVAC, and Food sectors
■ Automotive and Medical
■ Marine, Energy management and Industrial equipment
Dimensions:
Product specification:
|
(according to IEC 751)
|
R 0℃
(Ω) |
Tolerance
|
Long-term stability
|
Temperature coefficient
|
operation temperature range (℃)
|
|
XXPT-RTD -100-B
|
100
|
DIN EN 60751, class B |
max. R0-drift 0.04% after 1000 h at 500°C
|
TCR = 3850 ppm/K
|
-70～500 |
|
XXPT-RTD -100-A
|
100
|
DIN EN 60751, class A | -50～300 | ||
|
XXPT-RTD -100-C
|
100
|
DIN EN 60751, class 1/3 DIN | 0～150 | ||
|
XXPT-RTD -500-B
|
500
|
DIN EN 60751, class B | -70～500 | ||
|
XXPT-RTD -1000-B
|
1000
|
DIN EN 60751, class B | -70～500 | ||
|
XXPT-RTD -1000-A
|
1000
|
DIN EN 60751, class A | -50～300 | ||
| XXPT-RTD -1000-C | 1000 | DIN EN 60751, class 1/3 DIN | 0～150 |
