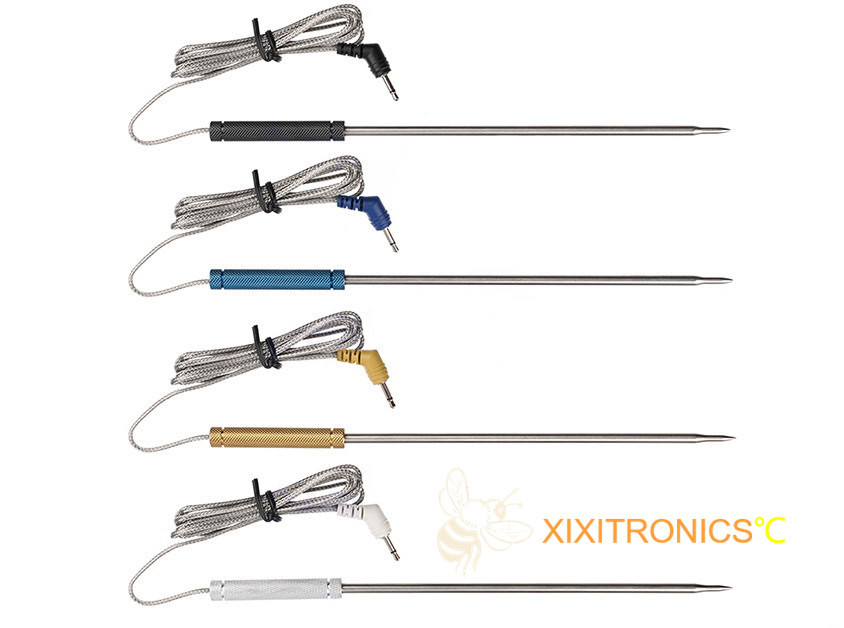

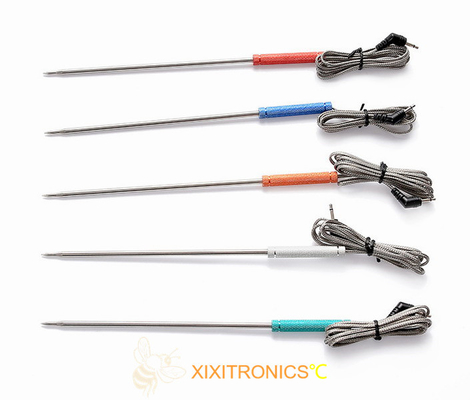

High Temperature Food Temperature Probe Sensor For Thermometer BBQ Bluetooth Thermometer

High Temperature Sensor for Food Thermometer, BBQ Bluetooth Thermometer, RF thermometer, WIFI Thermometer MFF-34 Series

Brief Introduction:

MFF-10 Series, using high-thermal-conductivity conductive paste, which will increase the detecting speed. We can design all kinds of shape and size for the SS304 tube according to customer’s requirement. The dimension of shrinking tip for SS304 tube can be adjusted for different temperature measurement speed requirements, and the water-proof level can be IPX3 to IPX7. This series of products have stable and reliable performance, high temperature sensitivity.

Features:

1. Sizes can be customized according to the designed constructure
2. Appearance can be customized, handle of PPS, PEEK, aluminum, SS304 material
3. High sensitivity of measuring temperature, high-temperature resistance
4. Resistance value and B value have high accuracy, products have an excellent consistency and stability
5. Wide range of applications
6. Products are in accordance with the RoHS, REACH certification
7. Usage of SS304 material which contact food directly can meet the FDA and LFGB certification
8. Can be customized with water-proof level from IPX3 to IPX7

Applications:

Food thermometers, oven thermometers, air fryer temperature probe

Specification:

1.Recommendation as follows:
   R25℃=98.63KΩ±1% B25/85℃=4066K±1% or
   R25℃=100KΩ±1% B25/50℃=3950K±1% or
   R200℃=1KΩ±3%, B100/200℃=4300K±2%

2. Working temperature range:
   -50℃～+300℃ or -50℃～+380℃

3. Thermal time constant: MAX.10sec.
4. 380℃ food-level SS304 braided sleeved within PTFE cable is recommended
5. The connector can be 2.5mm or 3.5mm audio plug
6. Above characteristics all can be customized
