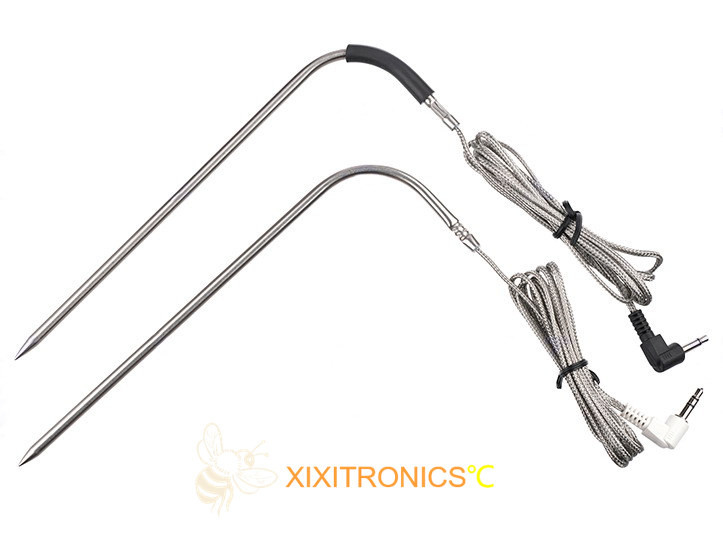

Platinum RTD PT1000 Pt100 Temperature Probe For BBQ MFF-54 Series

Certification
China Hefei XIXI Electronics Co., ltd certification
China Hefei XIXI Electronics Co., ltd certification
I'm Online Chat Now

Platinum RTD PT1000 Pt100 Temperature Probe For BBQ MFF-54 Series

Platinum RTD PT1000 Pt100 Temperature Probe For BBQ MFF-54 Series
Platinum RTD PT1000 Pt100 Temperature Probe For BBQ MFF-54 Series

Large Image :  Platinum RTD PT1000 Pt100 Temperature Probe For BBQ MFF-54 Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFF-54 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

Platinum RTD PT1000 Pt100 Temperature Probe For BBQ MFF-54 Series

Description
R 0℃: 100Ω, 500Ω, 1000Ω Accuracy: Class A, Class B
Temperature Coefficient: TCR=3850ppm/K Insulation Voltage: 1500VAC, 2sec
Insulation Resistance: 500VDC ≥100MΩ Wire: Food-grade SS304 Braided Cable
High Light:

RTD pt100 temperature probe

,

BBQ pt100 temperature probe

,

PT1000 bbq temperature probe

Platinum RTD PT100 PT1000 Temperature Sensor Probe for BBQ and Food Temperature Measuring MFF-54 Series



Brief Introduction:

MFF-54 series, it can be customized with different working requirements, uses 380℃ PTFE cable, uses one-piece insulated ceramic tube to prevent from short circuit, insurance of voltage-resistance and insulation performance.

Adopts food-grade SS304 tube with PT1000 chip in, uses 3.5mm mono or 3.5mm dual channel headphone plug as a connector.

The product has excellent characteristic stability and consistency, high-temperature measuring accuracy, wide temperature measurement range and high reliability.



Features:

1. Sizes and appearance can be customized according to the designed constructure
2. High sensitivity of measuring temperature, high-temperature resistance
3. Products have an excellent consistency and stability
4. Products are in accordance with the RoHS, REACH certification
5. Usage of SS304 material which contact food directly can meet the FDA and LFGB certification
6. Can be customized with water-proof level from IPX3 to IPX7



Applications:

    Food or drink temperature measuring , BBQ accessories, air fryer temperature probe



Specification:

1. PT100, PT500, PT1000 chip is recommended
2. Accuracy: class A , class B
3. Working temperature range: -60℃~+300℃or -60℃~+380℃
4. Insulation voltage:1500VAC, 2sec
5. Insulation resistance: 500VDC ≥100MΩ
6. Characteristics curve: TCR=3850ppm/K
7. Long-term stability: the change rate is less than 0.04% when working 1000 hours at maximum temperature
8. Food-grade SS304 braided cable is recommended
9. Communication mode: two-wire system
