Product Details:
|
| R 25℃: | 2KΩ-2.3 MΩ | B Value: | 3200-4200K |
|---|---|---|---|
| R Tolerance: | 0.5% , 1% , 2% , 3% , 5% | B Tolerance: | 0.5% , 1% , 2% , 3% |
| Highlight: | Baked oven temp probe,oven temp probe IPX7,oven temp thermometer IPX7 |
||

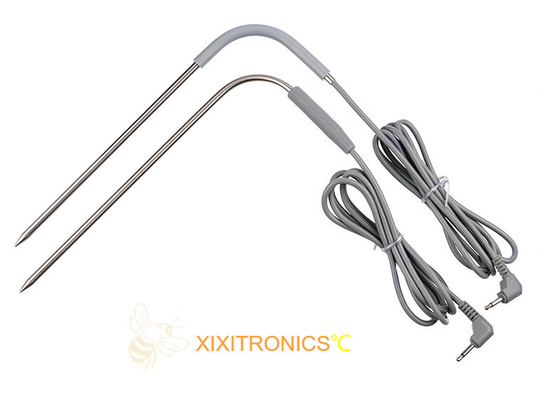

Temperature Sensor for Food of BBQ Thermometer, Baked Oven Thermometer MFF-32 Series
Brief Introduction:
MFF-32 series, using high-thermal-conductivity conductive paste, which will increase the detecting speed.
We can design all kinds of shape and size for the SS304 tube according to customer’s requirement. The dimension of shrinking tip for SS304 tube can be adjusted for different temperature measurement speed requirements, and the water-proof level can be IPX3 to IPX7.
This series of products have stable and reliable performance, high temperature sensitivity.
Features:
1. Sizes can be customized according to the designed constructure
2. Appearance can be customized by customers’ requirement
3. High sensitivity of measuring temperature, it just needs 6 seconds from environmental temperature to 100℃ in water
4. Resistance value and B value have high accuracy, products have an excellent consistency and stability
5. High-temperature resistant and wide range of applications
6. Products are in accordance with the RoHS, REACH certification
7. Usage of SS304 and silicone material can meet the FDA and LFGB certification
Applications:
Food thermometers, oven thermometers, air fryer temperature probe
Specification:
1. Recommendation as follows:
R25℃=98.63KΩ±1% B25/85℃=4066K±1% or
R25℃=100KΩ±1% B25/50℃=3950K±1% or
R200℃=1KΩ±3%, B100/200℃=4300K±2%
2. Working temperature range: -50℃～+200℃ or -50℃～+250℃
3. Thermal time constant: MAX.6 sec.
4. Silicone sleeved cable is recommended
5. The connector can be 2.5mm or 3.5mm audio plug
6. Above characteristics all can be customized
