Oven BBQ Thermometer Food Temperature Probe IPX6 IPX7 MFF-3601 Series

Certification
China Hefei XIXI Electronics Co., ltd certification
China Hefei XIXI Electronics Co., ltd certification
I'm Online Chat Now

Oven BBQ Thermometer Food Temperature Probe IPX6 IPX7 MFF-3601 Series

Oven BBQ Thermometer Food Temperature Probe IPX6 IPX7 MFF-3601 Series
Oven BBQ Thermometer Food Temperature Probe IPX6 IPX7 MFF-3601 Series

Large Image :  Oven BBQ Thermometer Food Temperature Probe IPX6 IPX7 MFF-3601 Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFF-36 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle
Delivery Time: 5-10 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

Oven BBQ Thermometer Food Temperature Probe IPX6 IPX7 MFF-3601 Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Food Temperature Probe IPX7

,

Oven Food Temperature Probe

,

oven food probe IPX6

Temperature Sensor for Food of BBQ Thermometer, Baked Oven Thermometer MFF-3601 Series





Brief Introduction:

1. MFF-36 Series, using high conductivity thermal paste to improve the temperauture detecting speed, and have stable, reliable performance and high temperature sensitivity.
2. The shape and size for the SS304 tube can be designed with the customers’ requirements . The OD of shrinking tip for SS304 tube can be adjusted for differentmeasurement speed requirements, the smaller the tip OD is, the faster the detecting speed will be; and the water-proof level can be IPX0, IPX3, IPX6, IPX7.

3. The material of handle can be resistant of 315℃, More suitable for high temperature places like grill, oven, etc. SS304 springs are designed on the upper end of the handle and the lower end of the plug to avoid cable damage caused by multiple bends in the use.

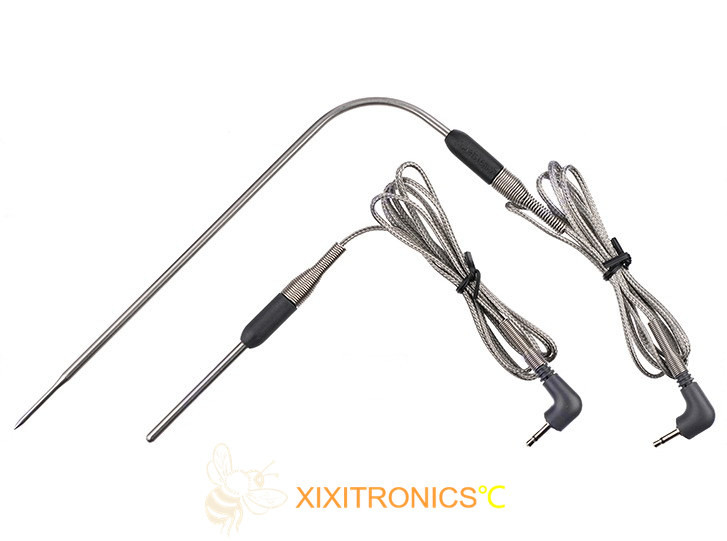

4. This series equipped with a tip probe and a round probe, the tip one used for food temperature-measuring and the round one can detect the ambient temperature of oven.



Features:

1. Sizes and appearance can be customized according to the designed constructure
2. High sensitivity of measuring temperature, high-temperature resistance
3. Resistance value and B value have high accuracy, products have an excellent consistency and stability
4. Wide range of applications
5. Products are in accordance with the RoHS, REACH certification
6. Usage of SS304 material which contact food directly can meet the FDA and LFGB certification
7. Can be customized with water-proof level from IPX3 to IPX7



Applications:

    Food thermometers, oven thermometers, air fryer temperature probe



Specification:

1. Recommendation as follows:
    R25℃=98.63KΩ±1% B25/85℃=4066K±1% or
    R25℃=100KΩ±1% B25/50℃=3950K±1% or
    R25℃=231.5KΩ±1%, B100/200℃=4537K±2%

2. Working temperature range: -50℃~+300℃ or -50℃~+380℃
3. Thermal time constant: MAX.10sec.
4. 380℃ food-level SS304 braided sleeved within PTFE cable is recommended
5. The connector can be 2.5mm or 3.5mm audio plug
6. Above characteristics all can be customized
