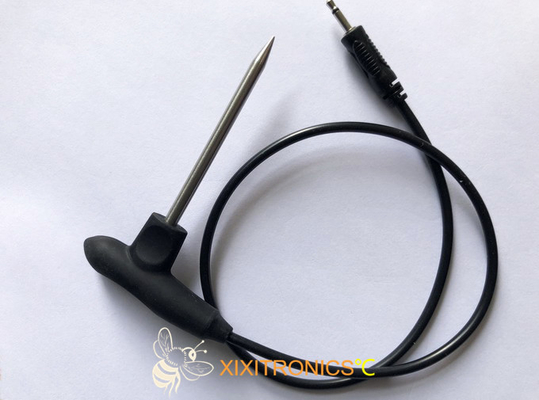

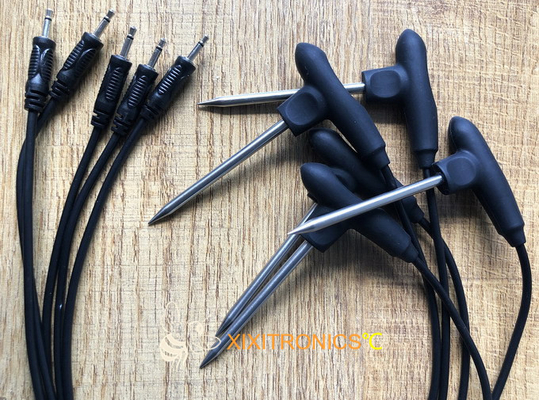

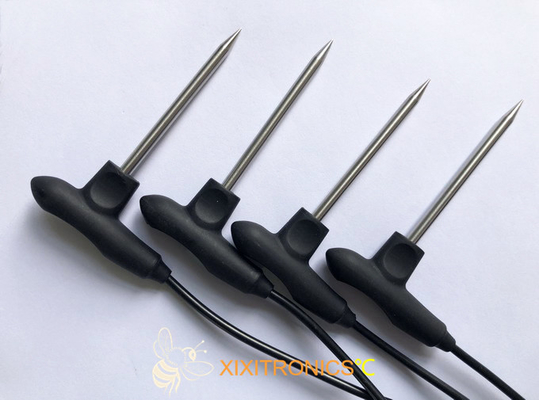

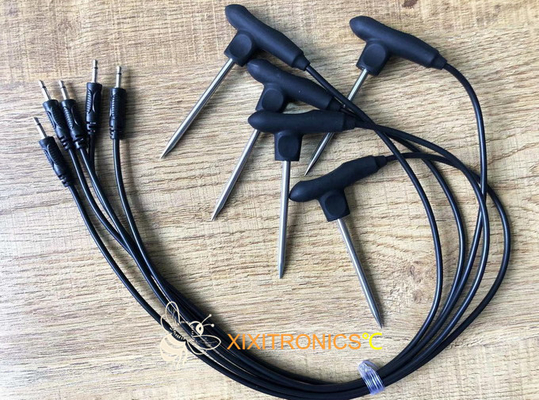

IPX3 Probe Thermometer For Food / Electronic Balance MFF-33 Series Meat Temperature Probe

Temperature sensor for Electronic Balance MFF-33 Series

Brief Introduction:

MFF-33 series, use condutive paste that with high thermal-conductivity, which can raise the speed of temperaturep detecting .

The shape and size for the SS304 tube can be customized according to customer’s requirements.

The dimension of shrinking tip for SS304 tube can be adjusted for different temperature-detecting-speed requirements;

the 2.5mm/3.5mm audio plug, micro or type-c connector is recommend; and the water-proof level is available from IPX3 to IPX7.

This series of products have accurate, stable, reliable and high sensitive performance.

Features:

1. Sizes can be customized according to the designed constructure
2. Appearance can be customized by customers’ requirement
3. High sensitivity of measuring temperature, it just needs 6 second from environmental temperature to 100℃ in water
4. Resistance value and B value have high accuracy, products have an excellent consistency and stability
5. High-temperature resistant and wide range of applications
6. Products are in accordance with the RoHS, REACH certification
7. Usage of SS304 material can meet the FDA and LFGB certification

Applications:

Electronic balance,food thermometer, baked oven thermometer

Specification:

1. Recommendation as follows:
   R25℃=98.63KΩ±1% B25/85℃=4066K±1% or
   R25℃=100KΩ±1% B25/50℃=3950K±1% or
   R100℃=3.3KΩ±2.5%, B0/100℃=3970K±2%

2. Working temperature range:  -50℃～+105℃ or -50℃～+200℃

3. Thermal time constant: MAX.6sec.
4. Silicone sleeved cable is recommended
5. The connector can be 2.5mm or 3.5mm audio plug
6. Above characteristics all can be customized
