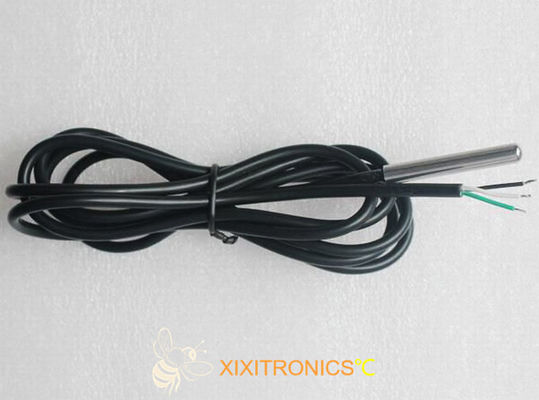

3 Wire PT100 Platinum RTD Temperature Sensor

3 Wire PT100 Platinum RTD Temperature Sensor
3 Wire PT100 Platinum RTD Temperature Sensor 3 Wire PT100 Platinum RTD Temperature Sensor 3 Wire PT100 Platinum RTD Temperature Sensor 3 Wire PT100 Platinum RTD Temperature Sensor

Large Image :  3 Wire PT100 Platinum RTD Temperature Sensor

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS,TRSensor
Certification: RoHS , REACH
Model Number: PT-RTD Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle, 50pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 1 Million Pieces Per Year

3 Wire PT100 Platinum RTD Temperature Sensor

Description
R 0℃: 100Ω, 500Ω, 1000Ω, Accuracy: 1/3 Class DIN-C, Class A, Class B
Temperature Coefficient: TCR=3850ppm/K Insulation Voltage: 1800VAC, 2sec
Insulation Resistance: 500VDC ≥100MΩ Wire: Φ4.0 Black Round Cable ,3-Core
Communication Mode: 2 Wire、3 Wire、4 Wire System Probe: Sus 6*40mm Can Be Made Double Rolling Groove
Highlight:

RTD pt100 temperature sensor 3 wire

,

Platinum RTD Temperature Sensors 3 Wire

,

pt100 temperature sensor 2 wire

3 Wire Platinum Resistance Temperature Detectors PT100, PT1000 Series



Features:
A platinum resistor is built into the various housing
Proven long term Stability and Reliability
Interchangeability and High Sensitivity with High precision

 Product is compatible with RoHS and REACH certifications
 SS304 tube is compatible with FDA and LFGB certifications


Applications:
White goods, HVAC, and Food sectors
Automotive and Medical
Marine, Energy management and Industrial equipment


Dimensions:

3 Wire PT100 Platinum RTD Temperature Sensor 0     3 Wire PT100 Platinum RTD Temperature Sensor 1

Product specification:



Specification

(according to IEC 751)

R 0℃
(Ω)

Tolerance

Long-term stability

Temperature coefficient

operation temperature range (℃)
XXPT-RTD -100-B
100
DIN EN 60751, class B


max. R0-drift 0.04% after 1000 h at 500°C


TCR = 3850 ppm/K
-70~500
XXPT-RTD -100-A
100
DIN EN 60751, class A -50~300
XXPT-RTD -100-C
100
DIN EN 60751, class 1/3 DIN 0~150
XXPT-RTD -500-B
500
DIN EN 60751, class B -70~500
XXPT-RTD -1000-B
1000
DIN EN 60751, class B -70~500
XXPT-RTD -1000-A
1000
DIN EN 60751, class A -50~300
XXPT-RTD -1000-C 1000 DIN EN 60751, class 1/3 DIN 0~150
