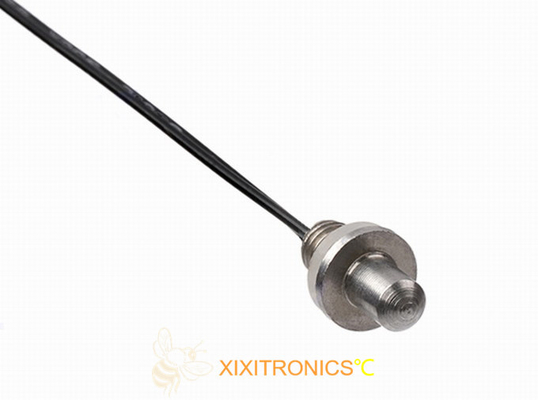

MFP-S11 Series 100K Temperature Sensor For Air Fryer And Baking Oven

MFP-S11 Series 100K Temperature Sensor For Air Fryer And Baking Oven
MFP-S11 Series 100K Temperature Sensor For Air Fryer And Baking Oven

Large Image :  MFP-S11 Series 100K Temperature Sensor For Air Fryer And Baking Oven

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFP-S11 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 20pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

MFP-S11 Series 100K Temperature Sensor For Air Fryer And Baking Oven

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Oven 100k temperature sensor

,

Air Fryer 100k temperature sensor

,

MFP 100k temperature sensor

100K Temperature Sensor for Air Fryer and Baking Oven MFP-S11 Series





Brief Introduction:

MFP-S11 series adopts food-safety SS304 housing and uses epoxy resin for encapsulation which has excellent performance of moisture-resistance, cooperated with mature manufacture technology, make products have high accuracy, sensitivity, stability and reliability.

It can be customized according to customer requirements,such as dimensions, materials, appearance, characteristics and so on, it will help customers install easily. This series products can comply with environmental requirements and export requirements.



Features:
Easy installation, and the products can be customized according to your every single requirement.

A glass thermistor is sealed with epoxy resin. Good resistance of moisture and high temperature.
Proven long term Stability and Reliability ,wide range of applications
Excellent performance of voltage resistance.

Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

Products are in accordance with the RoHS, REACH certification.


Applications:

■ Air Fryer and Baking Oven

Electric oven
Electric Baked Plate

Hot water boiler tanks, Water Heater
Automobile engines (solid), engine oil (oil), radiators (water)




Characteristics:

1. Recommendation as follows:
    R25℃=100KΩ±1% B25/85℃=4267K±1% or
    R25℃=100KΩ±3% B25/50℃=3950K±1% or
    R25℃=98.63KΩ±1%, B25/85℃=4066K±1%
2. Working temperature range: -30℃~+180℃ or -30℃~+250℃
3. Thermal time constant is MAX.15sec.

4. Insulation voltage is 1800VAC,2sec.
5. Insulation resistance is 500VDC ≥100MΩ
6. Teflon cable is suggested
7. PH, XH, SM or 5264 connector is recommended
8. Characteristics can be customized



Dimensions:



MFP-S11 Series 100K Temperature Sensor For Air Fryer And Baking Oven 0     MFP-S11 Series 100K Temperature Sensor For Air Fryer And Baking Oven 1



 MFP-S11 Series 100K Temperature Sensor For Air Fryer And Baking Oven 2



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFP-S-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




Max10 typical in stirred water





-30~180
-30~250

XXMFP-S-338/350-202□
2
3380/3500
XXMFP-S-327/338-502□ 5 3270/3380/3470
XXMFP-S-327/338-103□
10
3270/3380
XXMFP-S-347/395-103□ 10 3470/3950
XXMFP-S-395-203□
20
3950
XXMFP-S-395/399-473□ 47 3950/3990
XXMFP-S-395/399/400-503□
50
3950/3990/4000
XXMFP-S-395/405/420-104□ 100 3950/4050/4200
XXMFP-S-420/425-204□ 200 4200/4250
XXMFP-S-425/428-474□
470
4250/4280
XXMFP-S-440-504□ 500 4400
XXMFP-S-445/453-145□ 1400 4450/4530
