Product Details:
|
R 25℃: | 2KΩ-2.3 MΩ | B Value:: | 3200-4200K |
---|---|---|---|
R Tolerance: | 0.5% , 1% , 2% , 3% , 5% | B Tolerance: | 0.5% , 1% , 2% , 3% |
Applicable Pipe Size: | Φ12~Φ20mm Pipe | ||
Highlight: | RoHS Home Appliance Sensors,Gas Boiler Home Appliance Sensors,RoHS home temperature sensor |

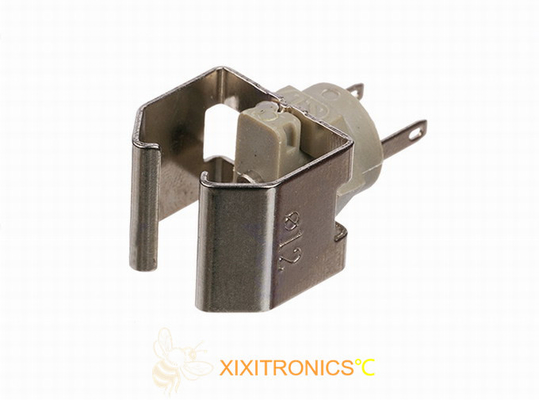

Pipe Clamp, Wall-Hung Gas boiler, Gas-Fired Heating Boiler, Water Heater, Spring Clip Sensor MFP-C Series
Features:
■ Spring Clip Sensor , Rapid Response ,Easy to Install
■ Moisture Resistant , High accuracy
■ Proven long term Stability and Reliability
■ High Sensitivity and Fast thermal response
■ Long and flexible leads for special mounting or assembly
Applications:
■ Air-conditioners (room and outdoor air)
■ Automobile air conditioners & heaters ,Endothermic pipe
■ Electric water boilers and water heater tanks (surface) Hot-water pipe
■ Fan heaters ,Condenser pipe
Dimensions:
Product specification:
Specification
|
R25℃
(KΩ) |
B25/50℃
(K) |
Disspation Constant
(mW/℃) |
Time Constant
(S) |
Operation Temperature
(℃) |
XXMFP-C-10-102□ | 1 | 3200 |
approx. 2.4 typical in still air at 25℃
|
3 - 7 typical in stirred water
|
-30~105
-30~125
-30~150
|
XXMFP-C-338/350-202□
|
2
|
3380/3500 | |||
XXMFP-C-327/338-502□ | 5 | 3270/3380/3470 | |||
XXMFP-C-327/338-103□
|
10
|
3270/3380 | |||
XXMFP-C-347/395-103□ | 10 | 3470/3950 | |||
XXMFP-C-395-203□
|
20
|
3950 | |||
XXMFP-C-395/399-473□ | 47 | 3950/3990 | |||
XXMFP-C-395/399/400-503□
|
50
|
3950/3990/4000 | |||
XXMFP-C-395/405/420-104□ | 100 | 3950/4050/4200 | |||
XXMFP-C-420/425-204□ | 200 | 4200/4250 | |||
XXMFP-C-425/428-474□
|
470
|
4250/4280 | |||
XXMFP-C-440-504□ | 500 | 4400 | |||
XXMFP-C-445/453-145□ | 1400 | 4450/4530 |
