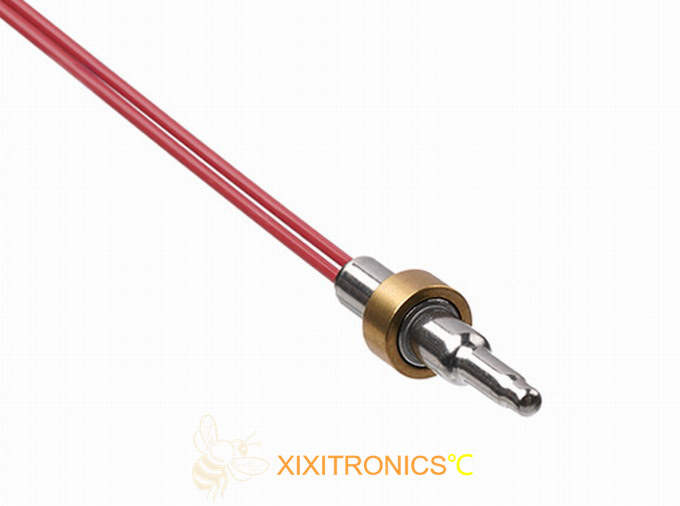

Electric Kettle Bullet Temperature Sensor Fastest Thermal Response MFB-08 Series

Electric Kettle Bullet Temperature Sensor Fastest Thermal Response MFB-08 Series
Electric Kettle Bullet Temperature Sensor Fastest Thermal Response MFB-08 Series

Large Image :  Electric Kettle Bullet Temperature Sensor Fastest Thermal Response MFB-08 Series

Product Details:
Place of Origin: China
Brand Name: XIXITRONICS
Certification: RoHS , REACH
Model Number: MFB-0809 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 30pcs / bundle
Delivery Time: 7-12 work days
Payment Terms: T/T
Supply Ability: 3 Million Pieces Per Year

Electric Kettle Bullet Temperature Sensor Fastest Thermal Response MFB-08 Series

Description
R 25℃: 2KΩ-2.3 MΩ B Value: 3200-4200K
R Tolerance: 0.5% , 1% , 2% , 3% , 5% B Tolerance: 0.5% , 1% , 2% , 3%
High Light:

Electric Kettle Bullet Temperature Sensor

,

10k Bullet Temperature Sensor

,

hot water heater temperature sensor

Temperature Sensor for Coffee Machine, Milk Foam Machine, Milk Warmer , Intelligent Closestool MFB-08 Series



Brief Introduction:
MFB-08 series, with characteristics of small size, high precision and fast response, are widely used for coffee machine, electric kettle, milk foam machine, milk heater, heating component of direct drinking machine and other fields with high sensitivity of temperature measurement.
MFB-8 series are with excellent temperature resistance, can be used up to 180℃, prevent over heating and dry burning from damaging the electrical parts of products. Minimum ф 2.1mm is a available for sensing part of encapsulated NTC thermistor, through process controlling of internal high thermal conductivity medium, to ensure the product thermal time constant τ(63.2%)≦2 seconds.
MFB-08 series is designed with ground terminal piece to avoid electricity leakage , in accord with UL safety and so on.



Features:

High Sensitivity and the Fastest thermal response

Good waterproof performance , moisture and high temperature resistance

A radial glass-encapsulated thermistor element is sealed with epoxy resin, Excellent performance of voltage resistance.
Proven long term Stability ,Reliability, and High Durability

■ Easy to install, and can be customized according to your every single requirement

Usage of Food-grade level SS304 housing, meet the FDA and LFGB certification.

Products are in accordance with the RoHS, REACH certification.


Applications:

 Coffee machine, Electric Kettle

Milk Foam Machine, Milk Warmer

Water Heater, Hot water boiler tanks, Heat Pump
Automobile engines (solid), engine oil (oil), radiators (water)
Intelligent Closestool ,Warm-water Bidet Toilets (instant inlet water)

Covers the whole water temperature range, wide application range



Characteristics:

1. Recommendation as follows:
    R25℃=100KΩ±1%, B25/85℃=4267K±1% or
    R25℃=100KΩ±1%, B25/50℃=3950K±1% or
    R25℃=98.63KΩ±1%, B25/85℃=4066K±1%
2. Working temperature range:

   -30℃~+105℃ or

   -30℃~+150℃ or

   -30℃~+180℃

3. Thermal time constant is MAX.3 sec.(in stirred water)
4. Insulation voltage: 1800VAC, 2sec.
5. Insulation resistance would be 500VDC ≥100MΩ
6. Cable customized, PVC, XLPE or teflon cable is recommended
7. Connector is recommended for PH, XH, SM or 5264 and so on



Dimensions:



Water Heaters / Bidet Toilets Temperature Sensors MFB Series 0 Water Heaters / Bidet Toilets Temperature Sensors MFB Series 1



Product specification:




Specification

R25℃
(KΩ)

B25/50℃
(K)
Disspation Constant
(mW/℃)
Time Constant
(S)
Operation Temperature
(℃)
XXMFP-S-10-102□ 1 3200




approx. 2.2 typical in still air at 25℃




Max.3
typical in stirred water




-30~105
-30~150
-30~180

XXMFP-S-338/350-202□
2
3380/3500
XXMFP-S-327/338-502□ 5 3270/3380/3470
XXMFP-S-327/338-103□
10
3270/3380
XXMFP-S-347/395-103□ 10 3470/3950
XXMFP-S-395-203□
20
3950
XXMFP-S-395/399-473□ 47 3950/3990
XXMFP-S-395/399/400-503□
50
3950/3990/4000
XXMFP-S-395/405/420-104□ 100 3950/4050/4200
XXMFP-S-420/425-204□ 200 4200/4250
XXMFP-S-425/428-474□
470
4250/4280
XXMFP-S-440-504□ 500 4400
XXMFP-S-445/453-145□ 1400 4450/4530
